CDSZC01100-HF
lmages are for reference only.CDSZC01100-HF
DIODE GEN PURP 100V 100MA 0201
Datasheet0201 (0603 Metric)
12,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 100 V 100mA Surface Mount 0201/DFN0603
CDSZC01100-HF
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Capacitance @ Vr, F | 3pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201/DFN0603 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | CDSZC01100 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
|

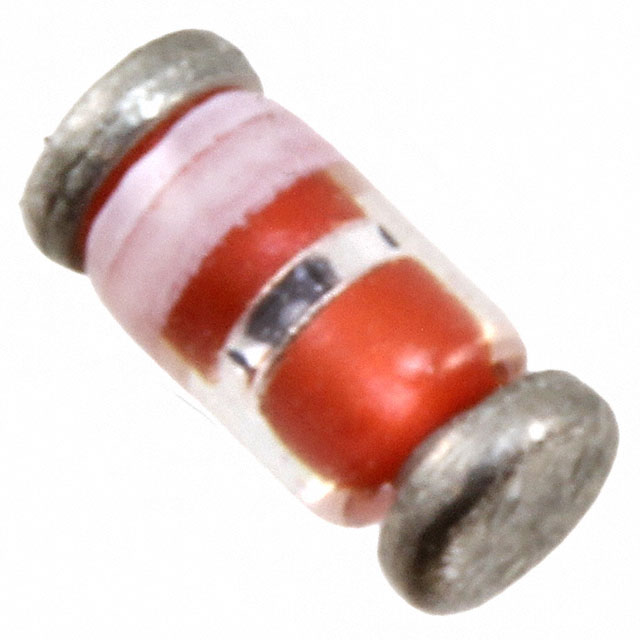

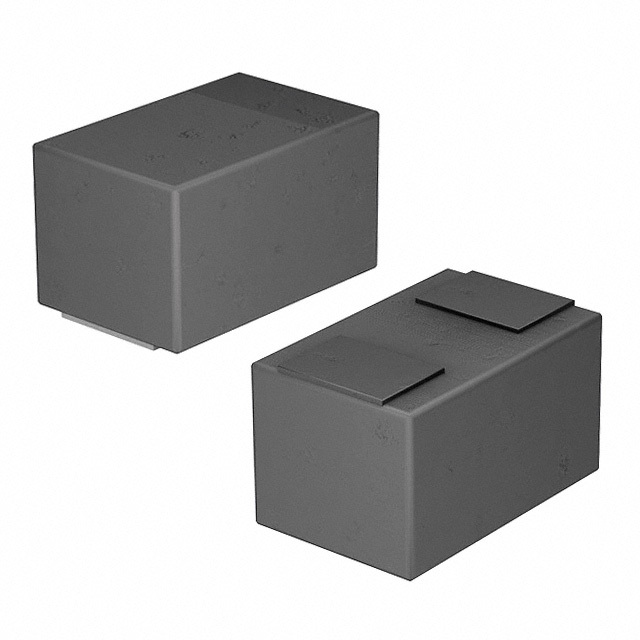

| Part Number | CDS5711UR-1 | CDSER400 | CDSER400B | CDSER4148 |
| Manufacturer | Microchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY DO-213AA | DIODE GEN PURP 80V 100MA 0503 | DIODE GEN PURP 80V 100MA 0503 | DIODE GEN PURP 75V 150MA 0503 |
| Series | * | - | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
