CEP125NP-1R0MC-HD
lmages are for reference only.CEP125NP-1R0MC-HD
FIXED IND 1UH 16.5A 2.5 MOHM SMD
DatasheetNonstandard
73,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Drum Core, Wirewound Inductor 16.5 A 2.5mOhm Max Nonstandard
CEP125NP-1R0MC-HD
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CEP125 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16.5 A |
| Current - Saturation (Isat) | 20A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

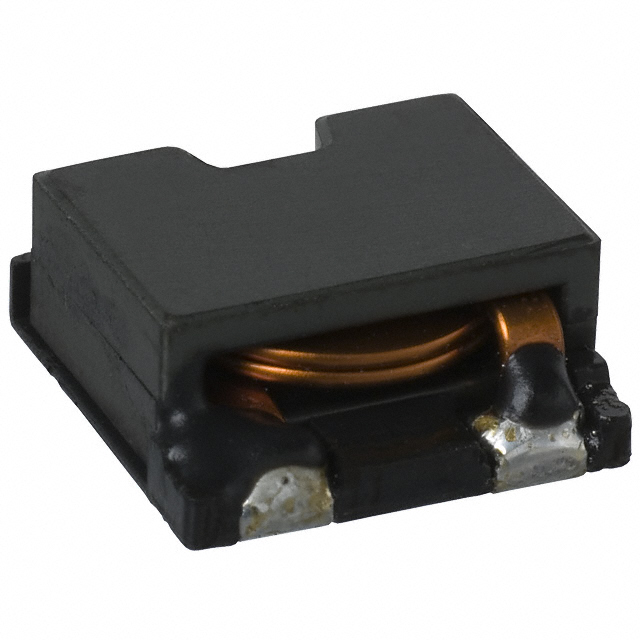

| Part Number | CEP125NP-1R0MC-H | CEP125NP-1R4MC-U | CEP125NP-1R5MC | CEP125NP-1R5MC-D |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 16.5A 2.5 MOHM SMD | FIXED IND 1.4UH 15.5A 3.4MOHM SM | FIXED IND 1.5UH 16.5A 2.5MOHM SM | FIXED IND 1.5UH 16.5A 2.5MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
