CEP125NP-4R0MC-H
lmages are for reference only.CEP125NP-4R0MC-H
FIXED IND 4UH 9.9A 8 MOHM SMD
DatasheetNonstandard
96,629 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 µH Shielded Drum Core, Wirewound Inductor 9.9 A 8mOhm Max Nonstandard
CEP125NP-4R0MC-H
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CEP125 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.9 A |
| Current - Saturation (Isat) | 10.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

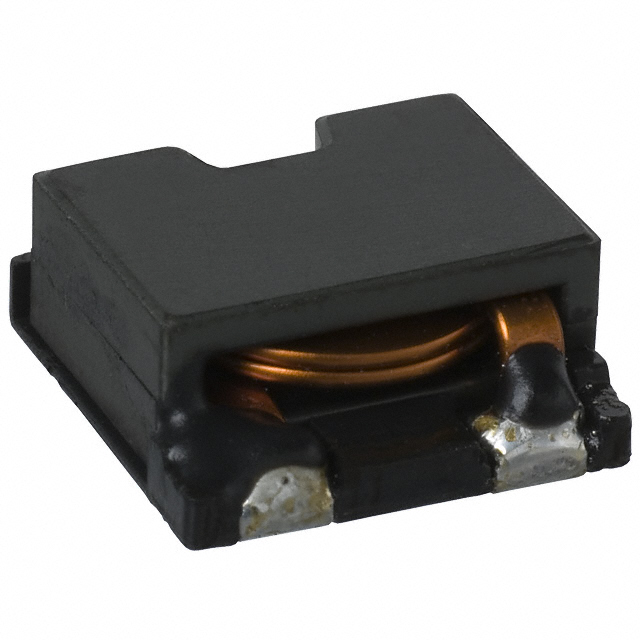

| Part Number | CEP125NP-4R0MC | CEP125NP-4R3MC-U | CEP125-0R3NC-UD | CEP125-0R3NC-UD |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 4UH 12.5A 5.4 MOHM SMD | FIXED IND 4.3UH 8.2A 11.4MOHM SM | FIXED IND 350NH 18.5A 1.5MOHM SM | FIXED IND 350NH 18.5A 1.5MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
