CG103U025U3C
lmages are for reference only.CG103U025U3C
CAP ALUM 10000UF 25V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
90,227 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 26mOhm @ 120Hz 2000 Hrs @ 85°C
CG103U025U3C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.165 A @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
|
|

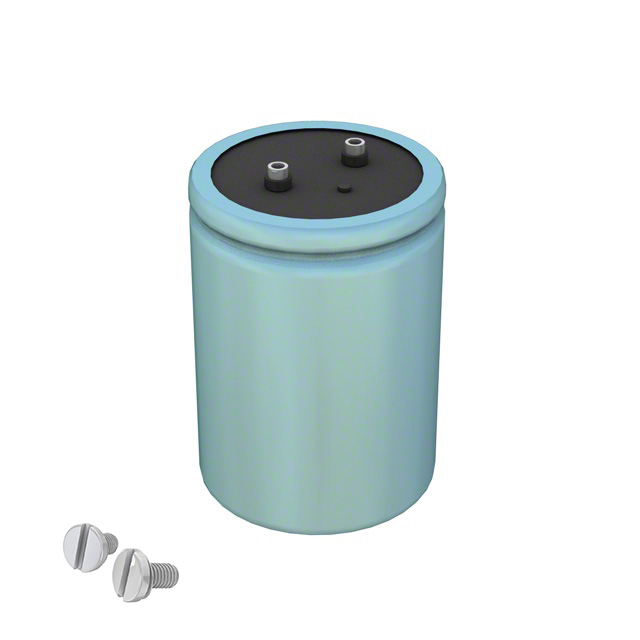

| Part Number | CG103U050X4C | CG101T350R2C | CG102T200V4C | CG102U075R3C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 50V SCREW CHAS | CAP ALUM 100UF 350V SCREW CHAS M | CAP ALUM 1000UF 200V SCREW CHAS | CAP ALUM 1000UF 75V SCREW CHAS M |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
