CGA4J3X5R1H225M125AB
lmages are for reference only.CGA4J3X5R1H225M125AB
CAP CER 2.2UF 50V X5R 0805
Datasheet0805 (2012 Metric)
56,874 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µF ±20% 50V Ceramic Capacitor X5R 0805 (2012 Metric)
CGA4J3X5R1H225M125AB
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | CGA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| Temperature Coefficient | X5R |
| Operating Temperature | -55°C ~ 85°C |
| Features | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.057" (1.45mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

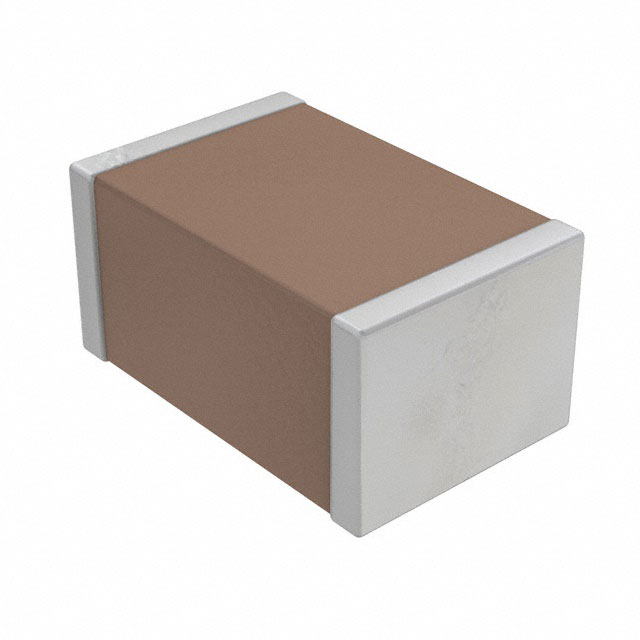

| Part Number | CGA4J3X5R1H225K125AB | CGA4J3X5R1A106K125AB | CGA4J3X5R1A106M125AB | CGA4J3X5R1A685K125AB |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 2.2UF 50V X5R 0805 | CAP CER 10UF 10V X5R 0805 | CAP CER 10UF 10V X5R 0805 | CAP CER 6.8UF 10V X5R 0805 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
