CGA5H4NP02J562G115AA

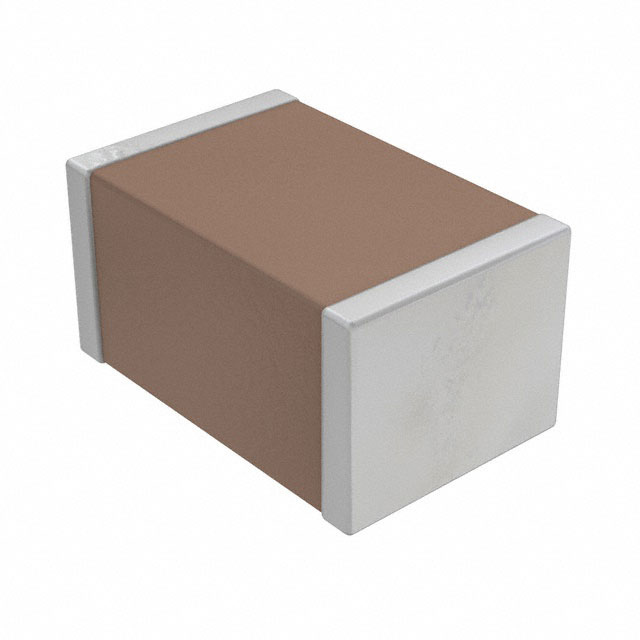

lmages are for reference only.CGA5H4NP02J562G115AA
AUTOMOTIVE GRADE,MLCC,1206,C0G,6
Datasheet1206 (3216 Metric)
53,336 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5600 pF ±20% 630V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
CGA5H4NP02J562G115AA
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 5600 pF |
| Tolerance | ±20% |
| Voltage - Rated | 630V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGA5H4NP02J562J115AA | CGA5H4NP02J682G115AA | CGA5H4NP02J682J115AA | CGA5H4NP02W682J115AA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 5600PF 630V NP0 1206 | AUTOMOTIVE GRADE,MLCC,1206,C0G,6 | CAP CER 6800PF 630V NP0 1206 | CAP CER 6800PF 450V NP0 1206 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
