CGA8L2NP01H473J160KA

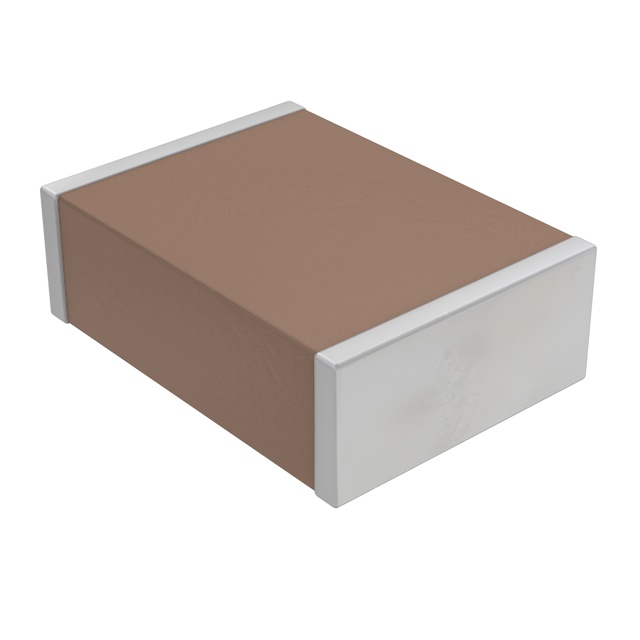

lmages are for reference only.CGA8L2NP01H473J160KA
CAP CER 0.047UF 50V NP0 1812
Datasheet1812 (4532 Metric)
41,906 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.047 µF ±5% 50V Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
CGA8L2NP01H473J160KA
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C |
| Features | High Temperature |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGA8L2NP01H683J160KA | CGA8L1C0G3F101K160KA | CGA8L1C0G3F121K160KA | CGA8L1C0G3F151K160KA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.068UF 50V NP0 1812 | CAP CER 100PF 3KV C0G 1812 | CAP CER 120PF 3KV C0G 1812 | CAP CER 150PF 3KV C0G 1812 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
