CGH112T500V4C
lmages are for reference only.CGH112T500V4C
CAP ALUM 1100UF 500V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
28,512 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1100 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 225mOhm @ 120Hz 1000 Hrs @ 85°C
CGH112T500V4C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CGH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1100 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 225mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

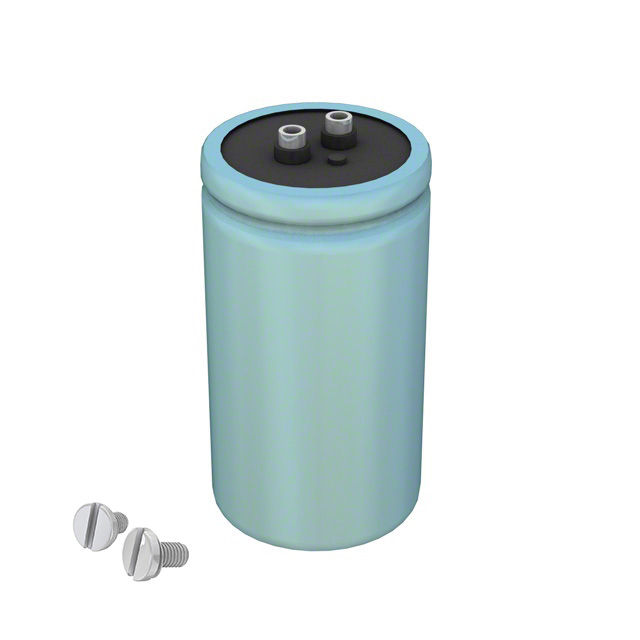

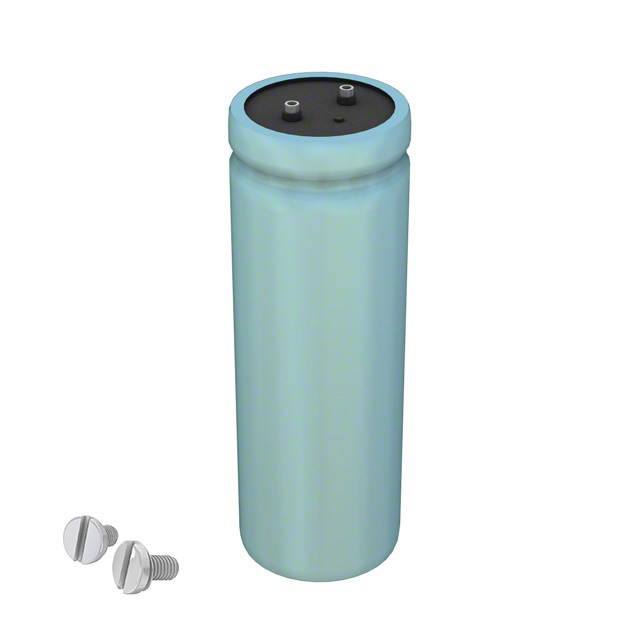

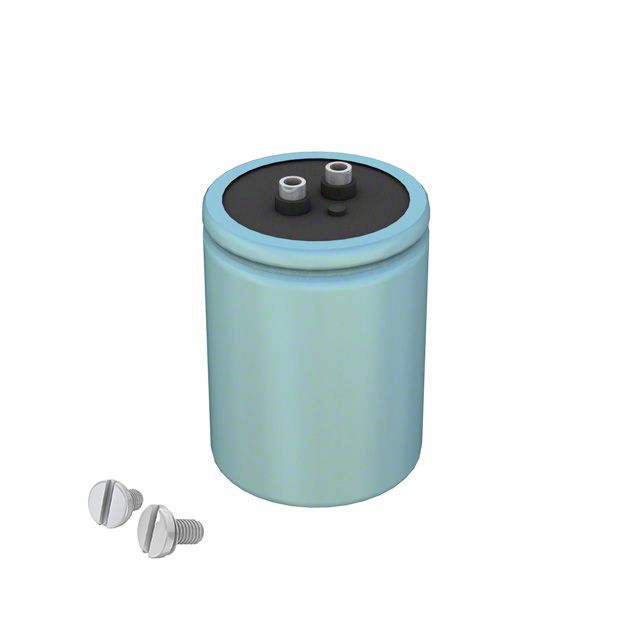

| Part Number | CGH102T350V2L | CGH102T450V3L | CGH103T250X4L | CGH103T350X8L |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 350V SCREW CHAS | CAP ALUM 1000UF 450V SCREW CHAS | CAP ALUM 10000UF 250V SCREW CHAS | CAP ALUM 10000UF 350V SCREW CHAS |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
