CHM-8R1L334R-TW
lmages are for reference only.CHM-8R1L334R-TW
8.1V 0.33F 26*9*16 T/L EDLC
DatasheetRadial
62,867 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 mF (EDLC) Supercapacitor 8.1 V Radial 540mOhm @ 1kHz 1000 Hrs @ 65°C
CHM-8R1L334R-TW
| Category | Capacitors - Electric Double Layer Capacitors EDLC-Supercapacitors - |
| Manufacturer | CDA (Zhifengwei Technology) |
| Series | CHM |
| Packaging | Box |
| RoHS Status | Request inventory verification |
| Capacitance | 330 mF |
| Tolerance | - |
| Voltage - Rated | 8.1 V |
| ESR (Equivalent Series Resistance) | 540mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Lead Spacing | - |
| Size / Dimension | 1.024" L x 0.354" W (26.00mm x 9.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Operating Temperature | -40°C ~ 65°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

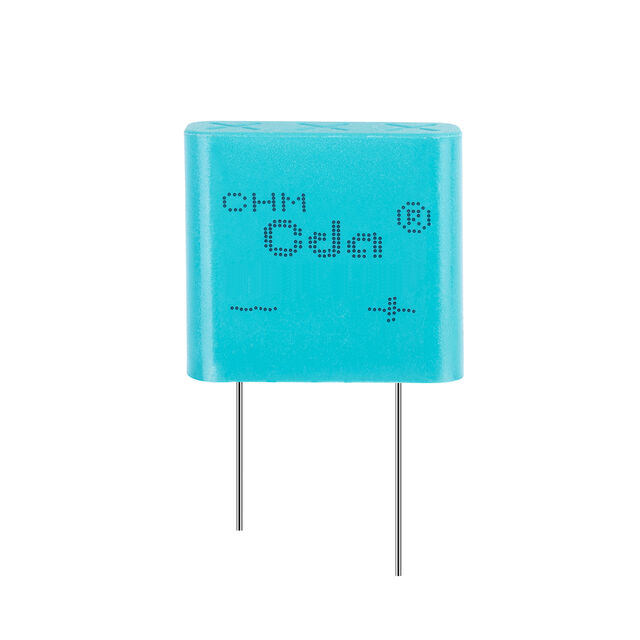

| Part Number | CHM-8R1L105R-TW | CHM-8R1L604R-TW | EEC-HW0D226 | EEC-RG0V224VN |
| Manufacturer | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | Request inventory verification | Request inventory verification | RoHS Compliant | RoHS Compliant |
| Description | 8.1V 1.0F 26*9*24 T/L EDLC | 8.1V 0.6F 26*9*20 T/L EDLC | CAP 22F -20% +40% 2.3V T/H | CAP 220MF -20% +80% 3.6V T/H |
| Series | CHM | CHM | HW | RG |
| Packaging | Box | Box | Bulk | Bulk |
