CHP5R5L126R-TW
lmages are for reference only.CHP5R5L126R-TW
5.5V 12F 32*16*27 T/DA EDLC
DatasheetRadial, Can
74,785 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 F (EDLC) Supercapacitor 5.5 V Radial, Can 50mOhm @ 1kHz 1000 Hrs @ 85°C
CHP5R5L126R-TW
| Category | Capacitors - Electric Double Layer Capacitors EDLC-Supercapacitors - |
| Manufacturer | CDA (Zhifengwei Technology) |
| Series | CHP-5.5V |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 12 F |
| Tolerance | - |
| Voltage - Rated | 5.5 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | - |
| Size / Dimension | 1.260" L x 0.630" W (32.00mm x 16.00mm) |
| Height - Seated (Max) | 1.122" (28.50mm) |
| Operating Temperature | -40°C ~ 70°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CHP5R5L104R-TW | CHP5R5L105R-TW | CHP5R5L105R-TWX | CHP5R5L106R-TW |
| Manufacturer | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

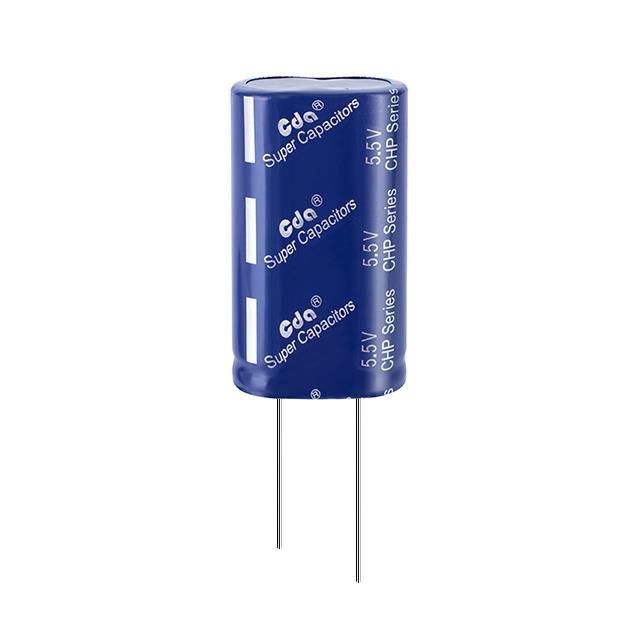

| Description | 5.5V 0.1F 10*5*12 EDLC | 5.5V 1F 16*8*14 T/DA EDLC | 5.5V 1F 16*8*18 T/DA EDLC | 5.5V 10F 25*12.5*28 T/DA EDLC |
| Series | CHP | CHP-5.5V | CHP-5.5V | CHP-5.5V |
| Packaging | Bag | Box | Box | Box |
