CHPFL-0100
lmages are for reference only.CHPFL-0100
RF FILTER HI PASS 100MHZ INLINE
DatasheetInline, SMA Connection, F and M
100,242 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100MHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth Inline, SMA Connection, F and M
CHPFL-0100
| Category | Filters - RF Filters - |
| Manufacturer | Crystek Corporation |
| Series | CHPFL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 100MHz |
| Bandwidth | - |
| Filter Type | High Pass |
| Ripple | - |
| Insertion Loss | - |
| Mounting Type | Free Hanging (In-Line) |
| Package / Case | Inline, SMA Connection, F and M |
| Size / Dimension | 0.435" Dia x 1.504" L (11.05mm x 38.20mm) |
| Height (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

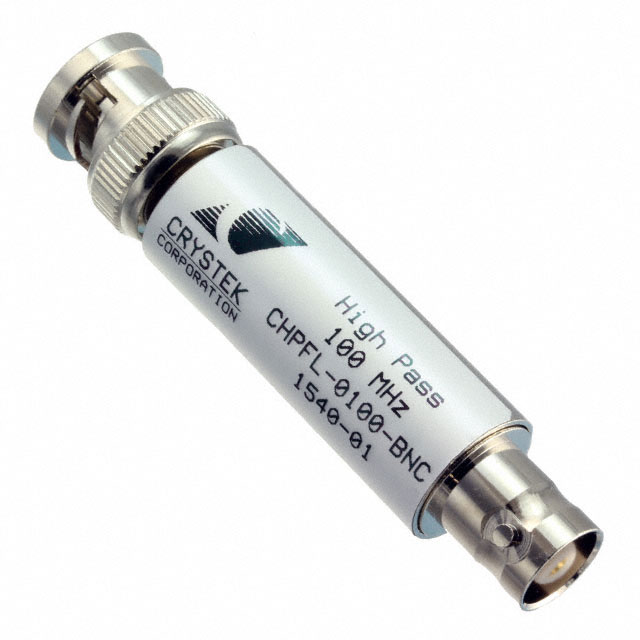

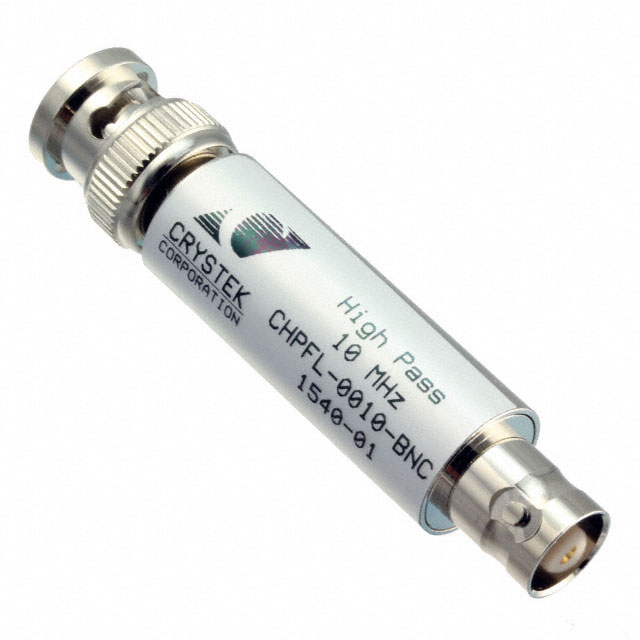

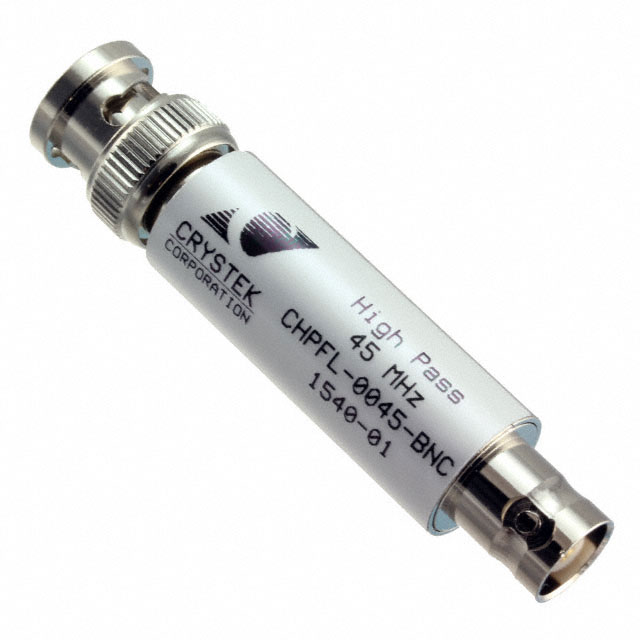

| Part Number | CHPFL-0100-BNC | CHPFL-0010-BNC | CHPFL-0025-BNC | CHPFL-0045-BNC |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER HI PASS 100MHZ INLINE | RF FILTER HIGH PASS 10MHZ INLINE | RF FILTER HIGH PASS 25MHZ INLINE | RF FILTER HIGH PASS 45MHZ INLINE |
| Series | CHPFL | CHPFL | CHPFL | CHPFL |
| Packaging | Bulk | Bulk | Bulk | Bulk |
