CHPV-3R9L155R-TW
lmages are for reference only.CHPV-3R9L155R-TW
3.9V 1.5F 16X8X22 T/DA EDLC
DatasheetRadial, Can
28,863 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 F (EDLC) Supercapacitor 3.9 V Radial, Can 200mOhm @ 1kHz 1000 Hrs @ 65°C
CHPV-3R9L155R-TW
| Category | Capacitors - Electric Double Layer Capacitors EDLC-Supercapacitors - |
| Manufacturer | CDA (Zhifengwei Technology) |
| Series | CHPV-3.9V |
| Packaging | Bag |
| RoHS Status | Request inventory verification |
| Capacitance | 1.5 F |
| Tolerance | - |
| Voltage - Rated | 3.9 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | - |
| Size / Dimension | 0.630" L x 0.315" W (16.00mm x 8.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Operating Temperature | -40°C ~ 65°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CHPV-3R9L255R-TW-DB | CHPV-3R9L474R-TW | CHPV-3R9L505R-TWQ-DB | CB5R5473VF-ZJ |
| Manufacturer | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) |
| RoHS Status | Request inventory verification | Request inventory verification | Request inventory verification | ROHS3 Compliant |

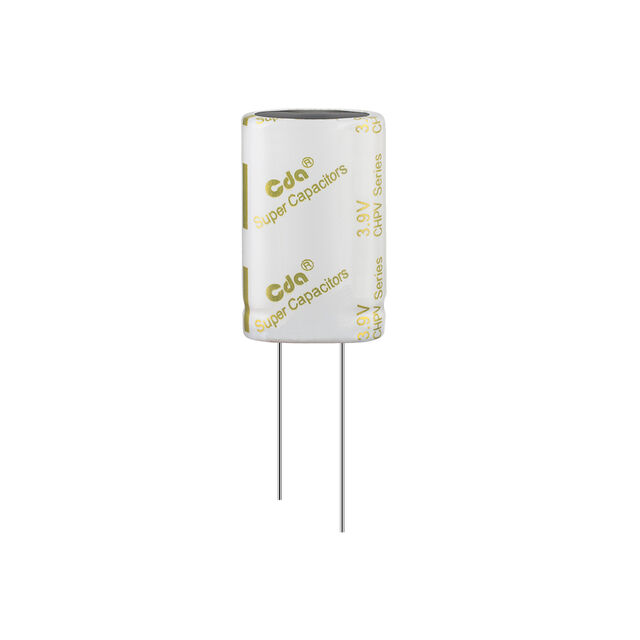

| Description | 3.9V 2.5F 20X10X22 T/DB EDLC | 3.9V 0.47F 16X8X14 T/DA EDLC | 3.9V 5F 20X10X32 T/DB EDLC | CAP 0.047F -20% +80% 5.5V T/V |
| Series | - | CHPV-3.9V | - | CB-5.5V |
| Packaging | Box | Bag | Box | Bag |
