Product CatalogPart Number
CHVM2R5-12-0350NW
Manufacturer
TDK-LambdaDescription
DC DC CONVERTER -350V 2.5W
Datasheet
DatasheetPackage
6-SIP Module
In Stock
42,465 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CHVM2R5-12-0350NW
CHVM2R5-12-0350NW
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output -350V 7mA 10.8V - 13.2V Input
Quick Inquiry
CHVM2R5-12-0350NW
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | CHVM (3W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | -350V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7mA |
| Power (Watts) | 2.45 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 3.15" L x 0.47" W x 0.78" H (80.0mm x 12.0mm x 19.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE, CSA, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

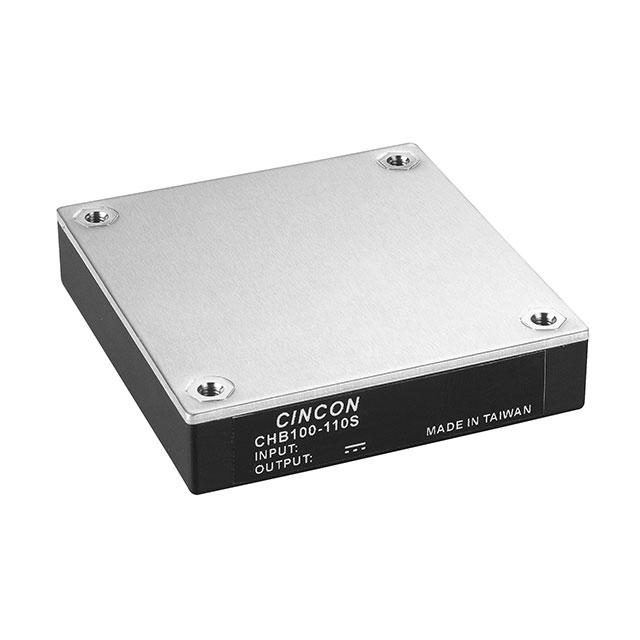

| Part Number | CHVM2R5-12-0350PW | CHB100-110S12 | CHB100-110S12-C | CHB100-110S15 |
| Manufacturer | TDK-Lambda | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 350V 2.5W | DC DC CONVERTER 12V 100W | RAILWAY BRICK DC-DC I/P:66-160VD | DC DC CONVERTER 15V 101W |
| Series | TDK-Lambda | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Box | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
CHVM2-12-1000NW
TDK-Lambda
CHVM2-12-1000NW
TDK-Lambda

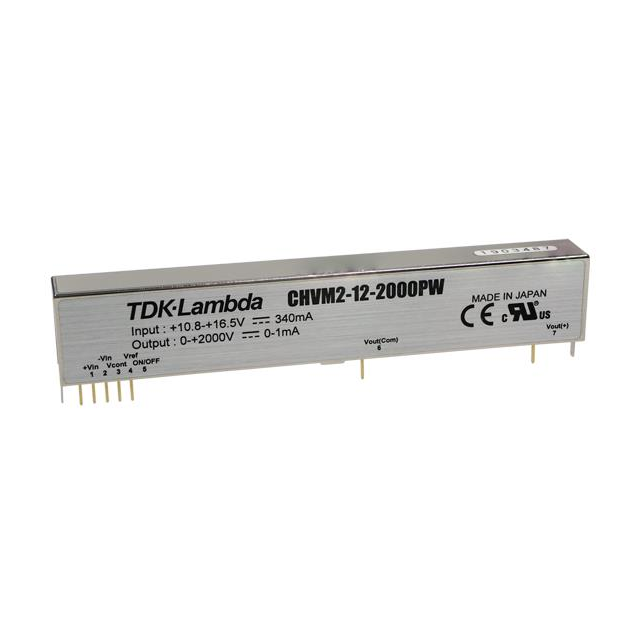

CHVM2-12-1000PW
