Product CatalogPart Number
CL-1-2
Manufacturer
Signal TransformerDescription
INDUCT ARRAY 2 COIL 18MH CHA MNT
Datasheet
DatasheetPackage
Nonstandard
In Stock
76,136 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

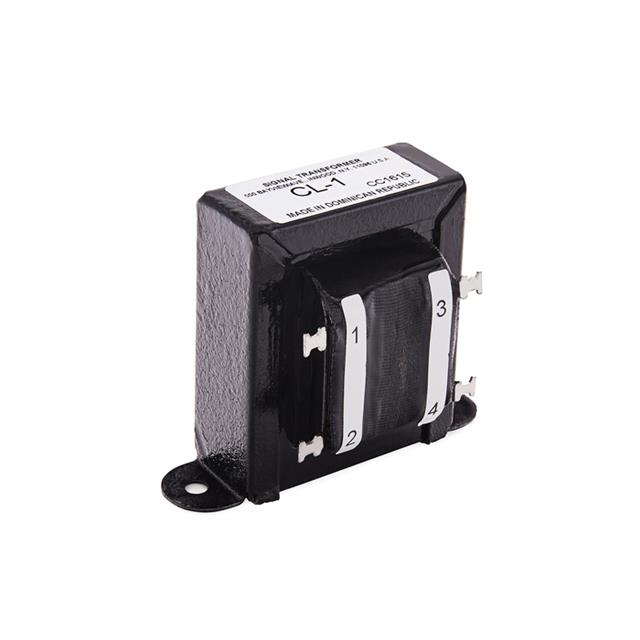

CL-1-2
CL-1-2
lmages are for reference only.Payment Methods
Delivery Services
Unshielded 2 Coil Inductor Array 72 mH Inductance - Connected in Series 18 mH Inductance - Connected in Parallel 350mOhm DC Resistance (DCR) - Parallel 2 A Nonstandard
Quick Inquiry
CL-1-2
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Signal Transformer |
| Series | CL |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 18 mH |
| Inductance - Connected In Series | 72 mH |
| Tolerance | - |
| Current Rating - Parallel | 2 A |
| Current Rating - Series | 1 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 350mOhm |
| DC Resistance (DCR) - Series | 1.4Ohm |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.874" L x 1.752" W (73.00mm x 44.50mm) |
| Height | 2.311" (58.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | CL-1-2 | CL-12-24 | CL-12-24 | CL-2-4 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 18MH CHA MNT | INDUCT ARRAY 2COIL 1.2MH CHA MNT | INDUCT ARRAY 2COIL 1.2MH CHA MNT | INDUCT ARRAY 2 COIL 10MH CHA MNT |
| Series | CL | CL | CL | CL |
| Packaging | Box | Box | Box | Box |
