CM1210B513R-1A
lmages are for reference only.CM1210B513R-1A
CMC 51UH 200MA 2LN 2.6KOHM SMD
DatasheetHorizontal, 4 PC Pad
41,671 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
51 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.6 kOhms @ 10 MHz 200mA DCR 700mOhm
CM1210B513R-1A
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 51 µH @ 100 kHz |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 700mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 150°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 2.6 kOhms @ 10 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

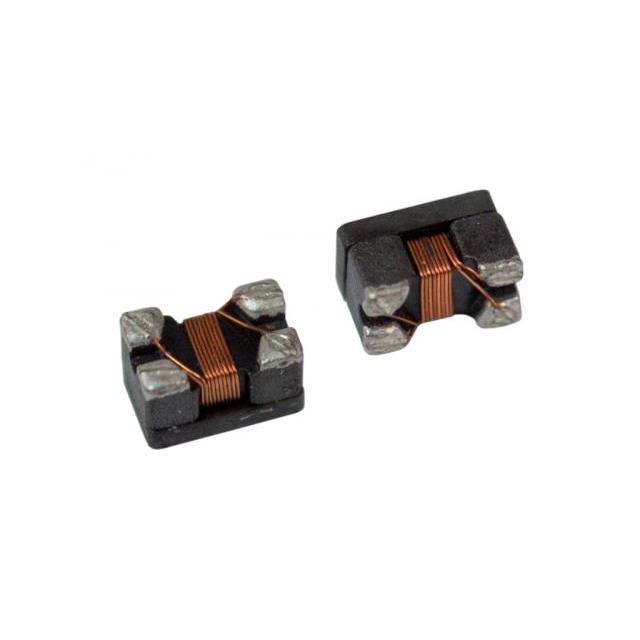

| Part Number | CM1206A601R-10 | CM1206C161R-10 | CM1210A204R-1A | CM1210B104R-1A |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 260MA 2LN 600 OHM SMD | CMC 340MA 2LN 160 OHM SMD | CMC 200UH 70MA 2LN SMD AEC-Q200 | CMC 100UH 150MA 2LN 5.1KOHM SMD |
| Series | CM1206 | CM | CM | CM |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
