CM309E8000000BBKT

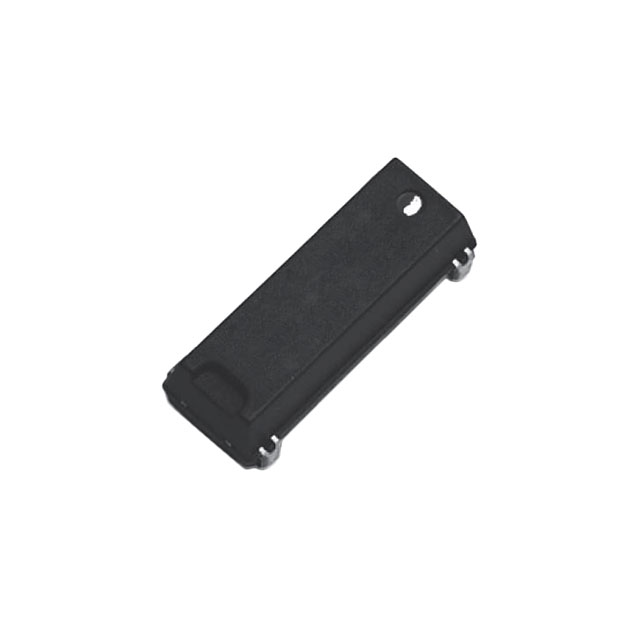

lmages are for reference only.CM309E8000000BBKT
CRYSTAL 8.0000MHZ 20PF SMD
Datasheet4-SOJ, 9.60mm pitch
39,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8 MHz ±50ppm Crystal 20pF 80 Ohms 4-SOJ, 9.60mm pitch
CM309E8000000BBKT
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | CM309E |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 8 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±50ppm |
| Load Capacitance | 20pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 9.60mm pitch |
| Size / Dimension | 0.461" L x 0.189" W (11.70mm x 4.80mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CM309E8000000BBKT | CM309E8000000BGIT | CM309E8000000BGIT | CM309E8.000MABJT |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 8.0000MHZ 20PF SMD | CRYSTAL 8.0000MHZ 16PF SMD | CRYSTAL 8.0000MHZ 16PF SMD | CRYSTAL 8.0000MHZ 18PF SMD |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
