CMATVS3V3 TR PBFREE
lmages are for reference only.CMATVS3V3 TR PBFREE
TVS DIODE 3.3VWM 11VC SOD923
DatasheetSOD-923
45,288 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
CMATVS3V3 TR PBFREE
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
| Power - Peak Pulse | 80W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Base Product Number | CMATVS3 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

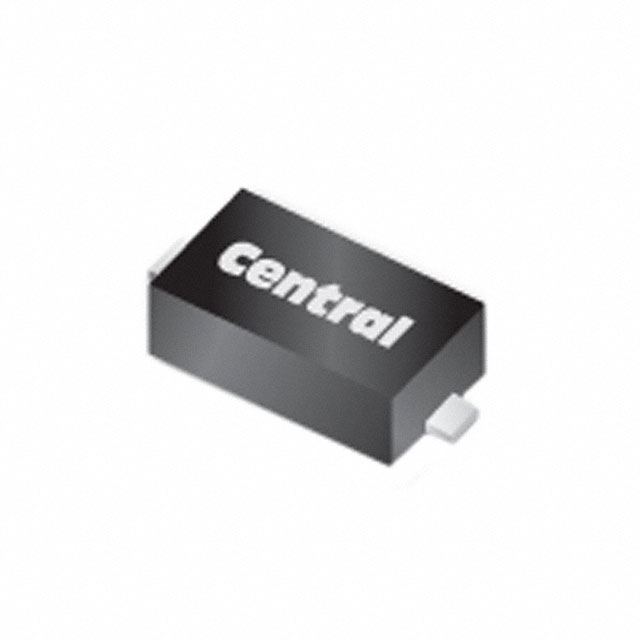

| Part Number | CMATVS5V0 TR PBFREE | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 | 5KP36A-TP |
| Manufacturer | Central Semiconductor Corp | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 12.3VC SOD923 | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 | TVS DIODE 36VWM 58.1VC R6 |
| Series | Central Semiconductor Corp | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
