CMD15-21VYC/TR8
lmages are for reference only.CMD15-21VYC/TR8
LED YELLOW CLEAR 1206 SMD
Datasheet1206 (3216 Metric)
16,751 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow LED Indication - Discrete 2V 1206 (3216 Metric)
CMD15-21VYC/TR8
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | CMD15-21 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 39mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 591nm |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.10mm |
| Base Product Number | CMD15-21 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

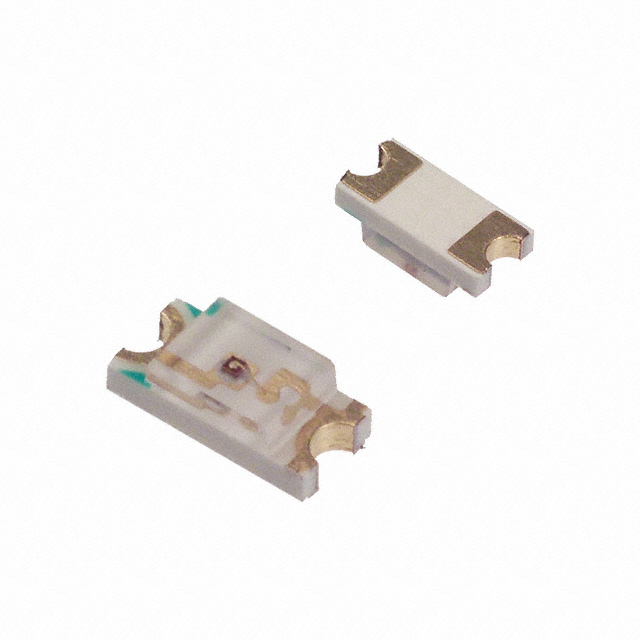

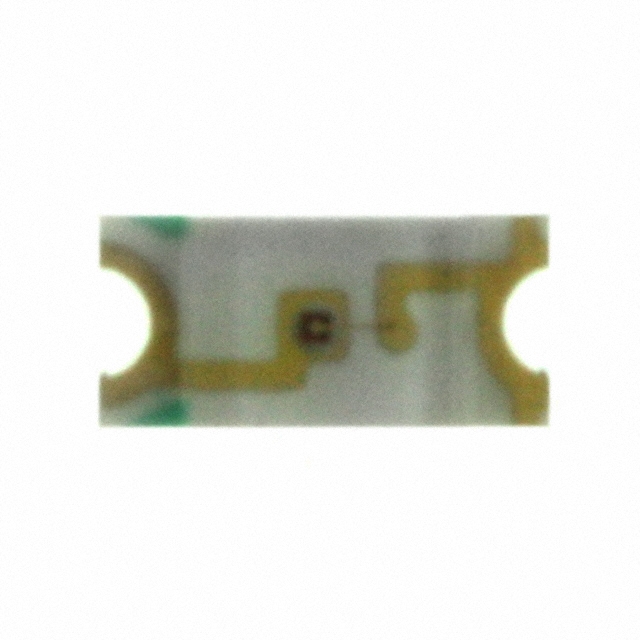

| Part Number | CMD15-21VGC/TR8 | CMD15-21VGD/TR8 | CMD15-21VRC/TR8 | CMD15-21VRD/TR8 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR 1206 SMD | LED GREEN DIFFUSED 1206 SMD | LED RED CLEAR 1206 SMD | LED RED DIFFUSED 1206 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
