CMD2821VRCTR8T1

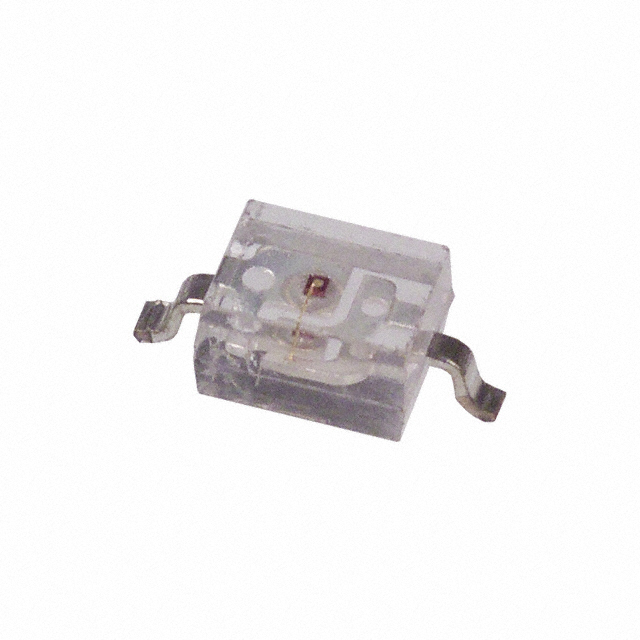

lmages are for reference only.CMD2821VRCTR8T1
LED RED CLEAR SMD
Datasheet2-SMD, Gull Wing
80,455 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 2V 2-SMD, Gull Wing
CMD2821VRCTR8T1
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | CMD28-21 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 0.16mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 1mA |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 640nm |
| Features | - |
| Package / Case | 2-SMD, Gull Wing |
| Supplier Device Package | SMD |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Height (Max) | 1.60mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CMD28-21SRC/TR8 | CMD28-21SRC/TR8/T1 | CMD28-21VGC/TR8 | CMD28-21VRC/TR8 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR SMD | LED RED CLEAR SMD | LED GREEN CLEAR SMD | LED RED CLEAR SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
