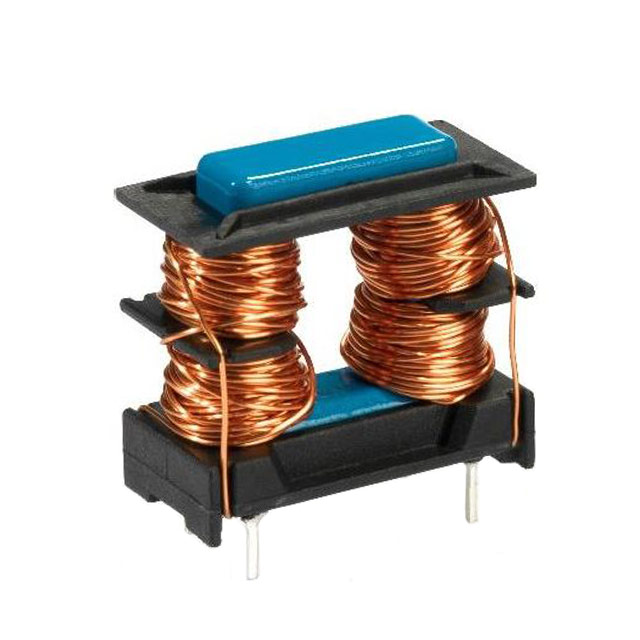

lmages are for reference only.CMF23V-393121
COMMON MODE INDUCTOR - L = 39MH
DatasheetVertical, 4 PC Pin
40,079 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
39 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 766mOhm
CMF23V-393121
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Triad Magnetics |
| Series | CMF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 39 mH @ 10 kHz |
| Current Rating (Max) | 1.2A |
| DC Resistance (DCR) (Max) | 766mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.142" L x 0.610" W (29.00mm x 15.50mm) |
| Height (Max) | 1.063" (27.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CMF23V-393121-B | CMF23V-103231 | CMF23V-104700 | CMF23V-104700-B |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 39MH 1.2A 2LN TH | CMC 10MH 2.3A 2LN TH | COMMON MODE INDUCTOR - L = 100MH | CMC 100MH 700MA 2LN TH |
| Series | CMF | CMF | CMF | CMF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
