CML0306-5N6-JNH

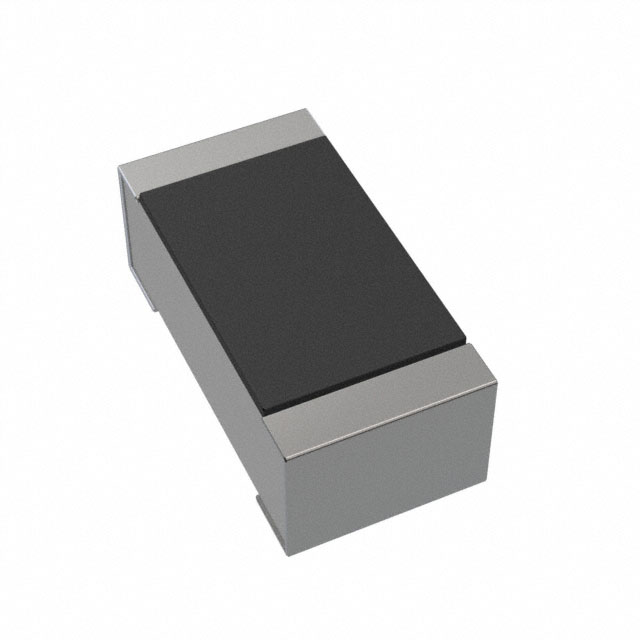

lmages are for reference only.CML0306-5N6-JNH
FIXED IND 5.6NH 260MA 550MOHM SM
Datasheet0201 (0603 Metric)
14,103 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 nH Shielded Thin Film Inductor 260 mA 550mOhm Max 0201 (0603 Metric)
CML0306-5N6-JNH
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | CML0306 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 5.6 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 260 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 4 @ 100MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.61mm x 0.31mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CML0306-5N1-HNH | CML0306-5N1-JNH | CML0306-5N1-JNH | CML0306-0N6-BNH |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 5.1NH 270MA 500MOHM SM | FIXED IND 5.1NH 270MA 500MOHM SM | FIXED IND 5.1NH 270MA 500MOHM SM | FIXED IND 0.6NH 900MA 100MOHM SM |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
