CMLB136T-680MS
lmages are for reference only.CMLB136T-680MS
IND SMD 68.0UH MOLDING CHOKE
DatasheetNonstandard
42,654 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µH Unshielded Molded Inductor 3 A 140mOhm Max Nonstandard
CMLB136T-680MS
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | CMLB136T |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 4.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CMLB136T-100MS | CMLB136T-101MS | CMLB136T-150MS | CMLB136T-151MS |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

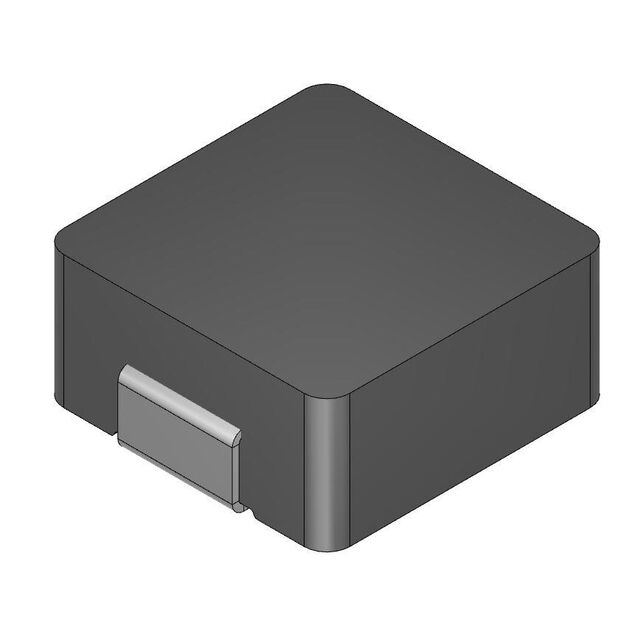

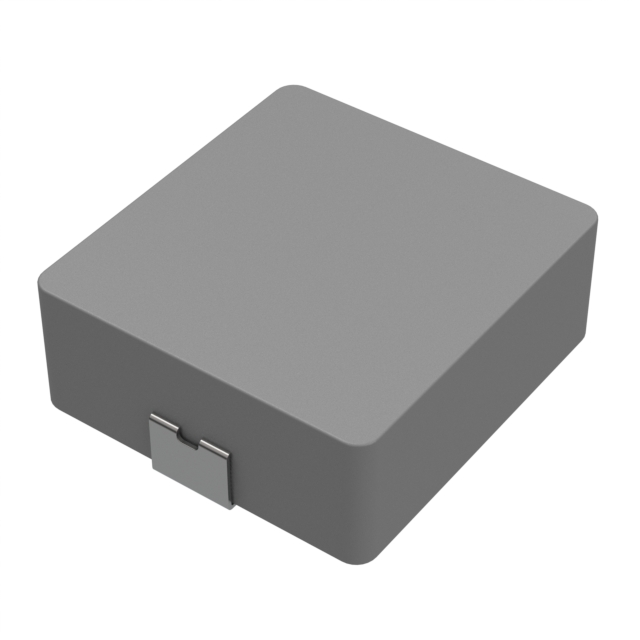

| Description | FIXED IND 10UH 10A 20.7 OHM SMD | FIXED IND 100UH 3A 198 OHM SMD | FIXED IND 15UH 8A 27.5 OHM SMD | IND SMD 150UH MOLDING CHOKE |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
