CMP1206AFX-21R5ELF

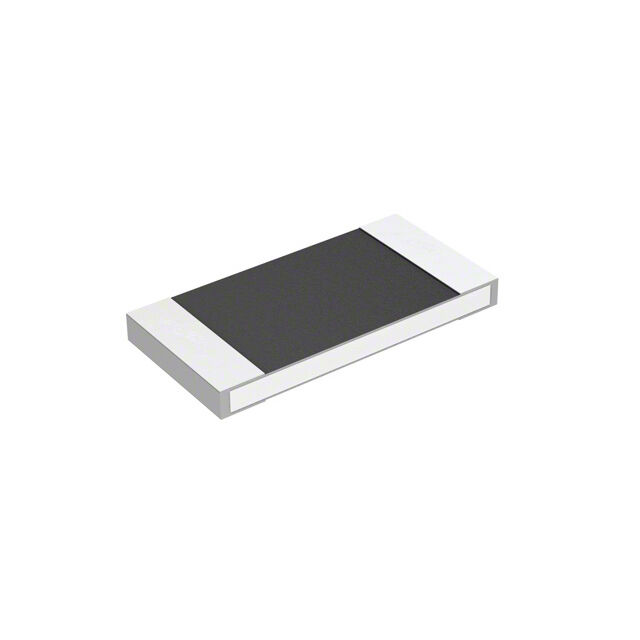

lmages are for reference only.CMP1206AFX-21R5ELF
RESHIGHPOWERA 1206 21R5 1% 3/4W
Datasheet1206 (3216 Metric)
90,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.5 Ohms ±1% 0.75W, 3/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thick Film
CMP1206AFX-21R5ELF
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Bourns Inc. |
| Series | CMP-A |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 21.5 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.75W, 3/4W |
| Composition | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | CMP1206AFX-2000ELF | CMP1206AFX-20R0ELF | CMP1206AFX-20R5ELF | CMP1206AFX-2200ELF |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RESHIGHPOWERA 1206 200R 1% 3/4W | RESHIGHPOWERA 1206 20R 1% 3/4W T | RESHIGHPOWERA 1206 20.5R 1% 3/4W | RESHIGHPOWERA 1206 220R 1% 3/4W |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
