CMR1-10M BK

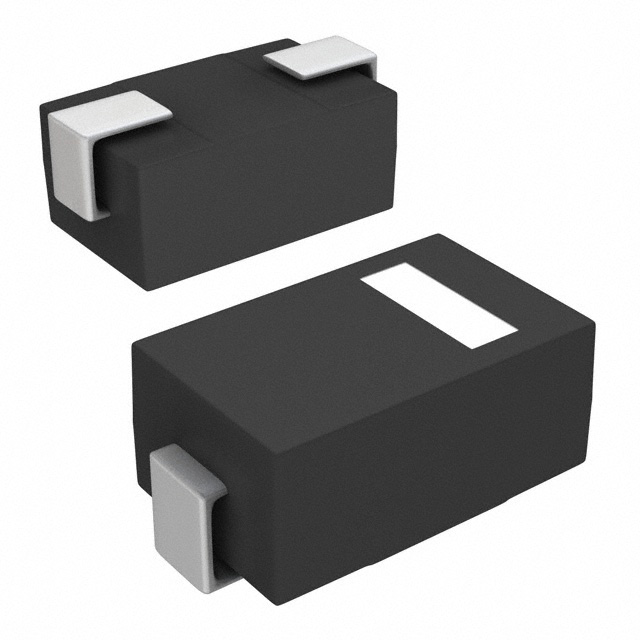

lmages are for reference only.CMR1-10M BK
DIODE GEN PURP 1KV 1A SMA
DatasheetDO-214AC, SMA
52,277 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 1000 V 1A Surface Mount SMA
CMR1-10M BK
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Capacitance @ Vr, F | 8pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | CMR1-10 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | CMR1-10M TR13 | CMR1-10M TR13 PBFREE | CMR1-01M BK | CMR1-01M TR13 |
| Manufacturer | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | |||
| Description | DIODE GEN PURP 1KV 1A SMA | DIODE GEN PURP 1KV 1A SMA | DIODE GEN PURP 100V 1A SMA | DIODE GEN PURP 100V 1A SMA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) |
