CMS-R200-1.0

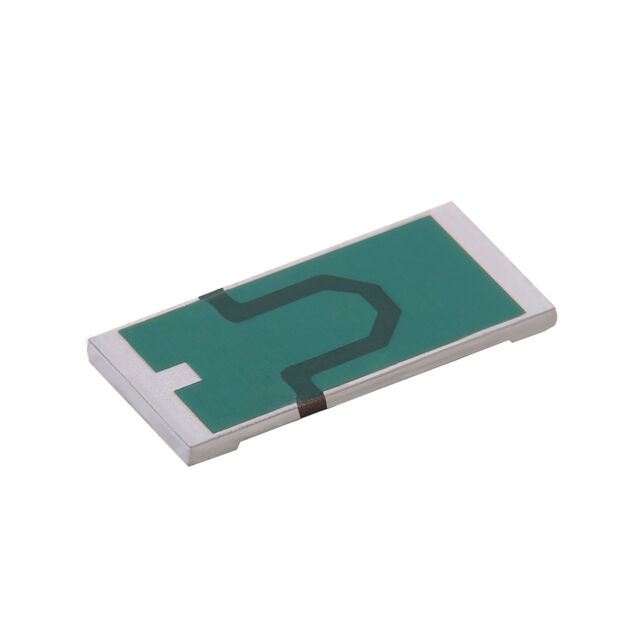

lmages are for reference only.CMS-R200-1.0
RESISTOR - ISA-PLAN SHUNT, 0.2,
Datasheet2512 (6432 Metric)
14,238 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200 mOhms ±1% 2.5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
CMS-R200-1.0
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Isabellenhuette USA |
| Series | CMS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 200 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 2.5W |
| Composition | - |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | - |
| Size / Dimension | 0.250" L x 0.120" W (6.35mm x 3.05mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

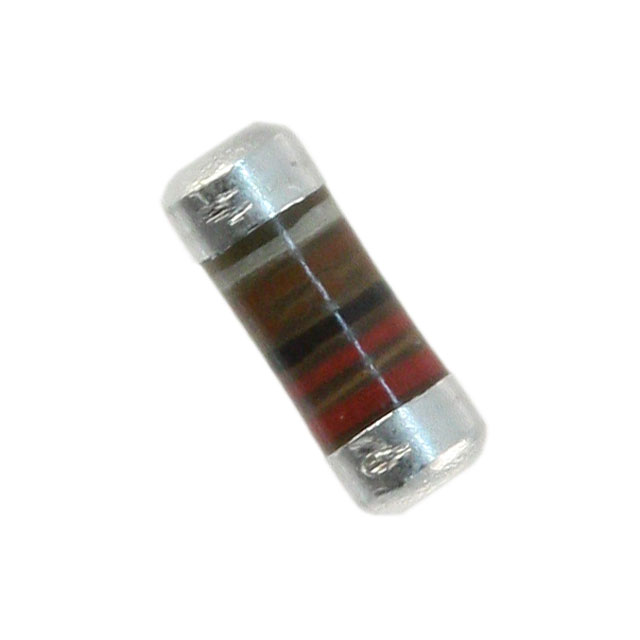

| Part Number | CMA02040X1000GB000 | CMA02040X1000GB300 | CMA02040X1001GB000 | CMA02040X1001GB300 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMA 0204 2% B0 100R | RES SMD 100 OHM 2% 0.4W 0204 | CMA 0204 2% B0 1K0 | RES SMD 1K OHM 2% 0.4W 0204 |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
