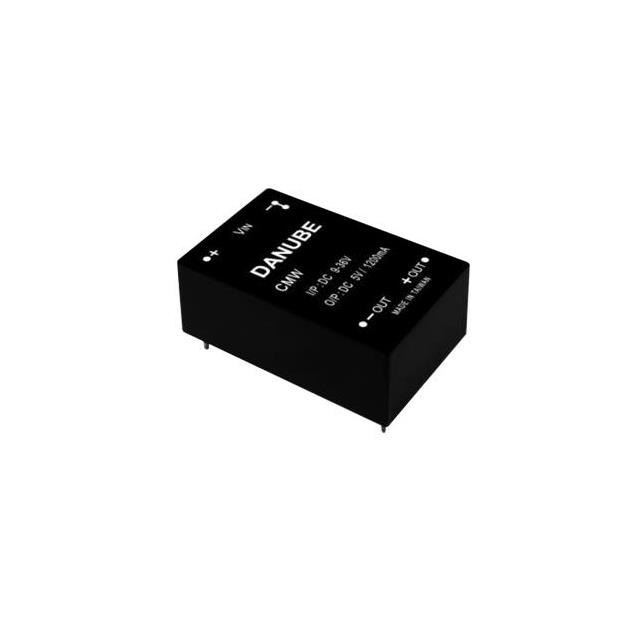

CMWD-2405C3T
lmages are for reference only.CMWD-2405C3T
DC DC CONVERTER +/-5V 3W
Datasheet24-DIP Module, 6 Leads
41,379 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 75V Input
CMWD-2405C3T
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Diwell Electronics |
| Series | CMW (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA, 300mA |
| Power (Watts) | 3 W |
| Applications | Medical |
| Features | - |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 79% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 6 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 60601-1 |
| Base Product Number | - |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
 |
 |
 |

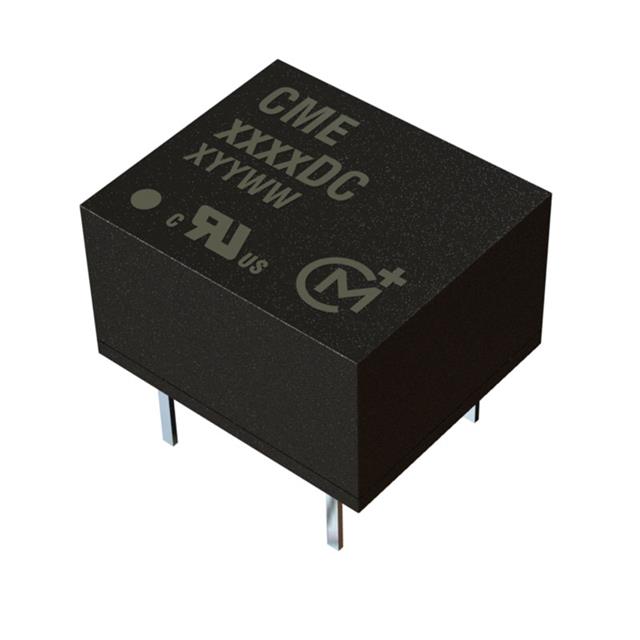

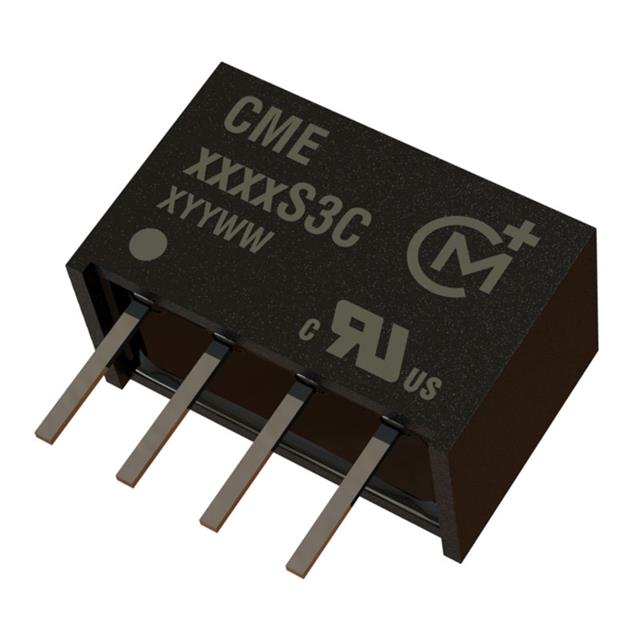

| Part Number | CME0303S3C | CME0305S3C | CME0505DC | CME0505DPC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 750MW | DC DC CONVERTER 5V 750MW | DC DC CONVERTER 5V 750MW | DC DC CONVERTER 5V 750MW |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
