CMX1211Z181B-10
lmages are for reference only.CMX1211Z181B-10
CMC 180UH 32A 2LN SMD
DatasheetHorizontal, 4 PC Pad
13,644 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
180 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 32A DCR 1.35mOhm
CMX1211Z181B-10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CMX1211 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 180 µH @ 100 kHz |
| Current Rating (Max) | 32A |
| DC Resistance (DCR) (Max) | 1.35mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.240" L x 0.984" W (31.50mm x 25.00mm) |
| Height (Max) | 0.748" (19.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

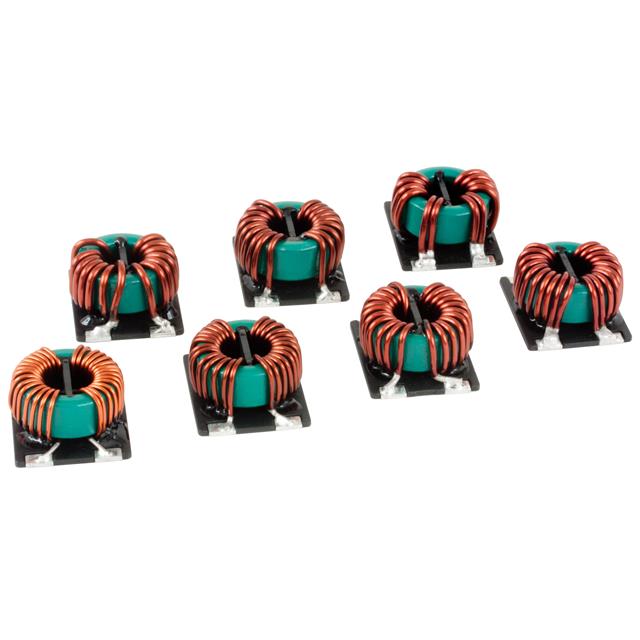

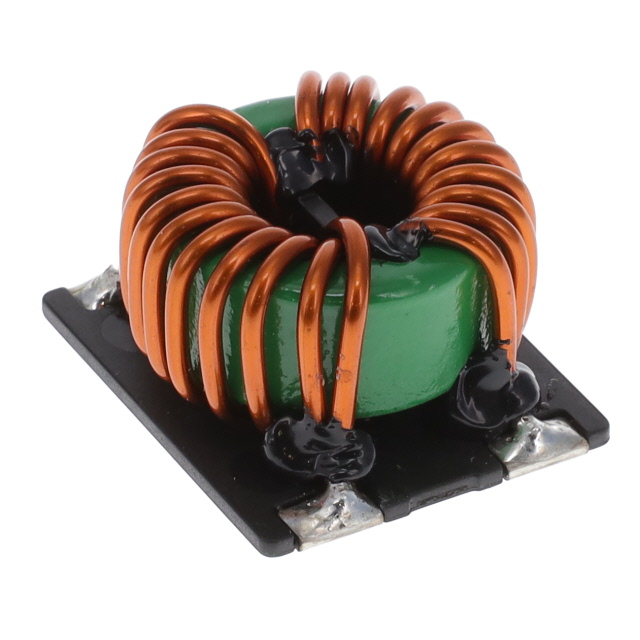

| Part Number | CMX1211W182B-10 | CMX1211X132B-10 | CMX1211Y801B-10 | CMX1211Z321B-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 1.8UH 9A 2LN SMD | CMC 1.3MH 11A 2LN SMD | CMC 800UH 16A 2LN SMD | CMC 320UH 28A 2LN SMD |
| Series | CMX1211 | CMX | CMX | CMX1211 |
| Packaging | Bulk | Bulk | Bulk | Tray |
