CMX309HWC32.768M-UT

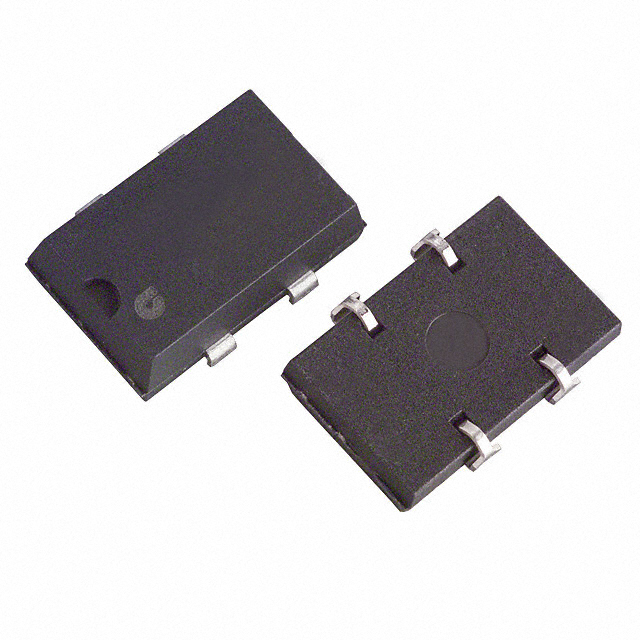

lmages are for reference only.CMX309HWC32.768M-UT
XTAL OSC XO 32.7680MHZ CMOS TTL
Datasheet4-SOJ, 5.08mm pitch
33,133 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32.768 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
CMX309HWC32.768M-UT
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | CMX-309 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 32.768 MHz |
| Function | Enable/Disable |
| Output | CMOS, TTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±100ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 5.08mm pitch |
| Size / Dimension | 0.547" L x 0.341" W (13.90mm x 8.65mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | CMX309HWC32.000M-UT | CMX309HWC33.000M-UT | CMX309HWC33.8688MT | CMX309HWC40.000M-UT |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | RoHS non-compliant | |||
| Description | XTAL OSC XO 32.0000MHZ CMOS TTL | XTAL OSC XO 33.0000MHZ CMOS TTL | XTAL OSC XO 33.8688MHZ CMOS TTL | XTAL OSC XO 40.0000MHZ CMOS TTL |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
