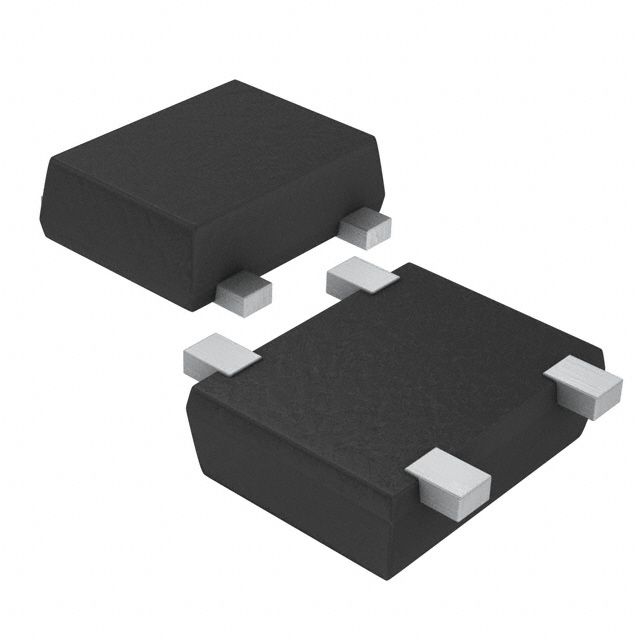

CMYTVS5-2 BK
lmages are for reference only.CMYTVS5-2 BK
TVS DIODE 5V 12V SOT543
DatasheetSC-75-4, SOT-543
40,461 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-543
CMYTVS5-2 BK
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.2V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | Yes |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.9pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-75-4, SOT-543 |
| Supplier Device Package | SOT-543 |
| Base Product Number | - |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

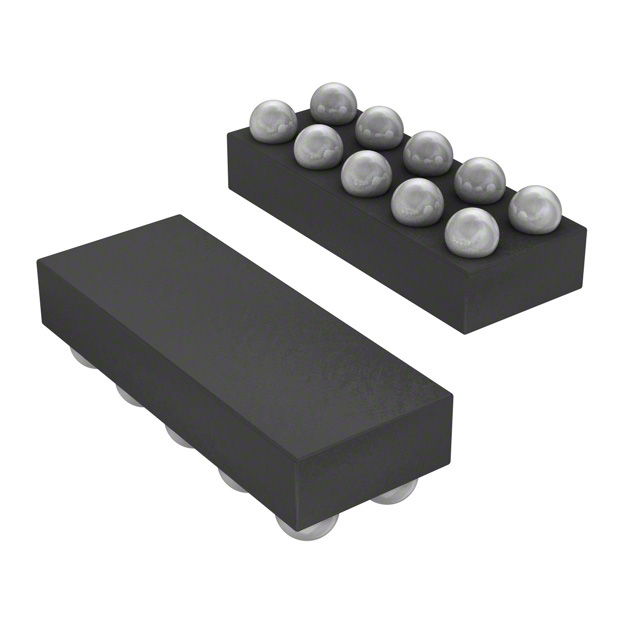

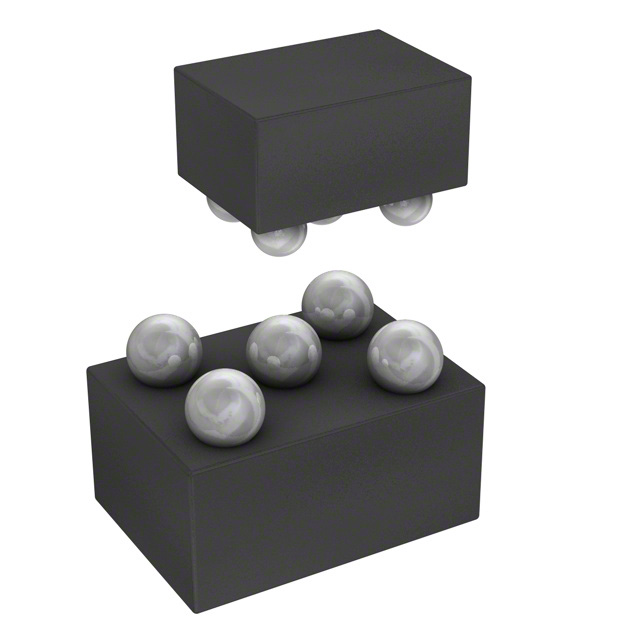

| Part Number | CMYTVS5-2 TR | CM1204-03CP | CM1205-08CP | CM1213-06MR |
| Manufacturer | Central Semiconductor Corp | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 12VC SOT543 | TVS DIODE 15VC 5WLCSP | TVS DIODE 3.3VWM 8VC 10WLCSP | TVS DIODE 3.3VWM 8.8VC 8-MSOP |
| Series | Central Semiconductor Corp | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
