CMZ5929B BK PBFREE
lmages are for reference only.CMZ5929B BK PBFREE
DIODE ZENER 15V 500MW SMA
DatasheetDO-214AC, SMA
13,011 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 15 V 500 mW ±5% Surface Mount SMA
CMZ5929B BK PBFREE
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 9 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 11.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | CMZ5929 |
| Product Attribute |  |
.jpg "CMZ12(TE12L,Q,M)") |
.jpg "CMZ13(TE12L,Q,M)") |
.jpg "CMZ15(TE12L,Q,M)") |

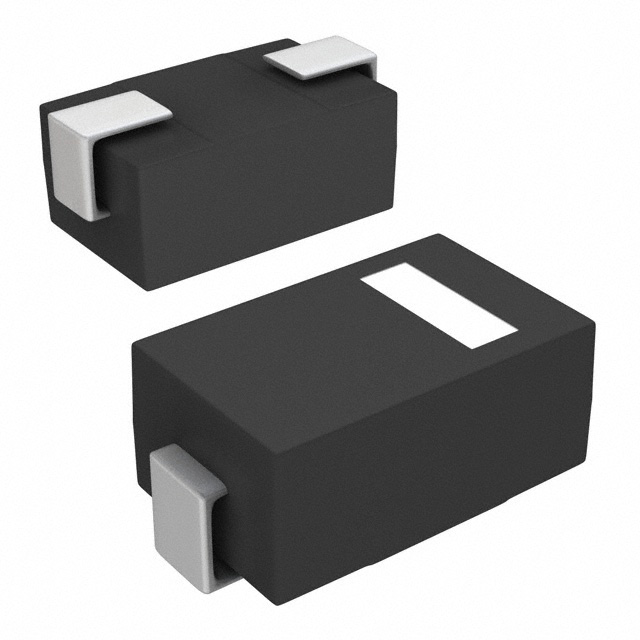

| Part Number | CMZ5929B TR13 PBFREE | CMZ12(TE12L,Q,M) | CMZ13(TE12L,Q,M) | CMZ15(TE12L,Q,M) |
| Manufacturer | Central Semiconductor Corp | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 15V 1.5W SMA | DIODE ZENER 12V 2W MFLAT | DIODE ZENER 13V 2W MFLAT | DIODE ZENER 15V 2W MFLAT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
