CPDF24V-HF

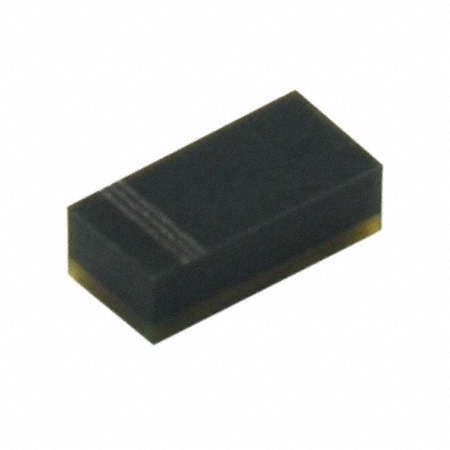

lmages are for reference only.CPDF24V-HF
TVS DIODE 24VWM 25V 1005/SOD323F
Datasheet1005 (2512 Metric)
19,049 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 1005/SOD-323F
CPDF24V-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V |
| Voltage - Breakdown (Min) | 25V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | 47W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 1005 (2512 Metric) |
| Supplier Device Package | 1005/SOD-323F |
| Base Product Number | CPDF24 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CPDF24V | CPDF24V0U-HF | CPDF12V | CPDF12V-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 24VWM 47V 1005/SOD323F | TVS DIODE 24VWM 50V 1005/SOD323F | TVS DIODE 12VWM 25V 1005/SOD323F | TVS DIODE 12VWM 25V 1005/SOD323F |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
