Product CatalogPart Number
CPDH5V0P-HF
Manufacturer
Comchip TechnologyDescription
TVS DIODE 5VWM 13VC SOD523
Datasheet
DatasheetPackage
SC-79, SOD-523
In Stock
52,348 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPDH5V0P-HF
CPDH5V0P-HF

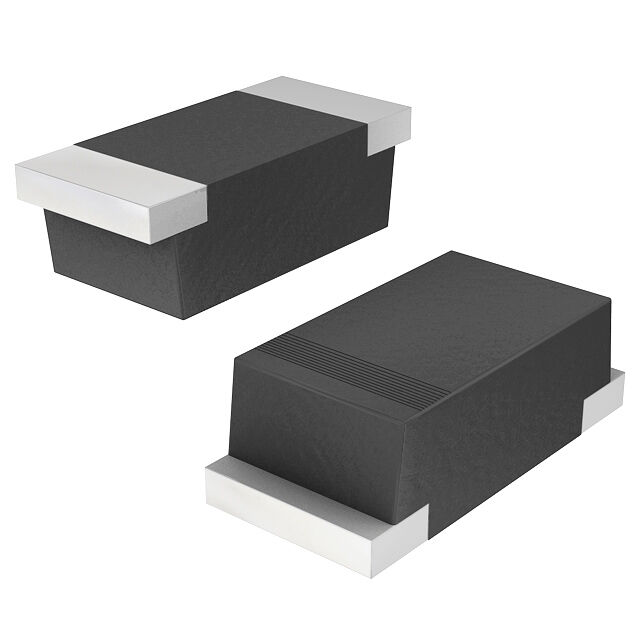

lmages are for reference only.Payment Methods
Delivery Services
13V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Quick Inquiry
CPDH5V0P-HF
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.6V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 39W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | CPDH5V0 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | CPDH5-5V0U | CPDH5-5V0U-HF | CPDH5V0A-HF | CPDH5V0U |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 10VC SOT553 | TVS DIODE 5VWM 10VC SOT553 | TVS DIODE 5VWM 20VC SOD523 | TVS DIODE 5VWM 12.5VC SOD523 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
