Product CatalogPart Number
CPDQ3V3-HF
Manufacturer
Comchip TechnologyDescription
TVS DIODE 3.3VWM 14.1VC 0402
Datasheet
DatasheetPackage
SOD-923
In Stock
17,991 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPDQ3V3-HF
CPDQ3V3-HF
lmages are for reference only.Payment Methods
Delivery Services
14.1V Clamp 11.2A (8/20µs) Ipp Tvs Diode Surface Mount 0402/SOD-923F
Quick Inquiry
CPDQ3V3-HF
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 14.1V |
| Current - Peak Pulse (10/1000µs) | 11.2A (8/20µs) |
| Power - Peak Pulse | 158W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | 0402/SOD-923F |
| Base Product Number | CPDQ3V3 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

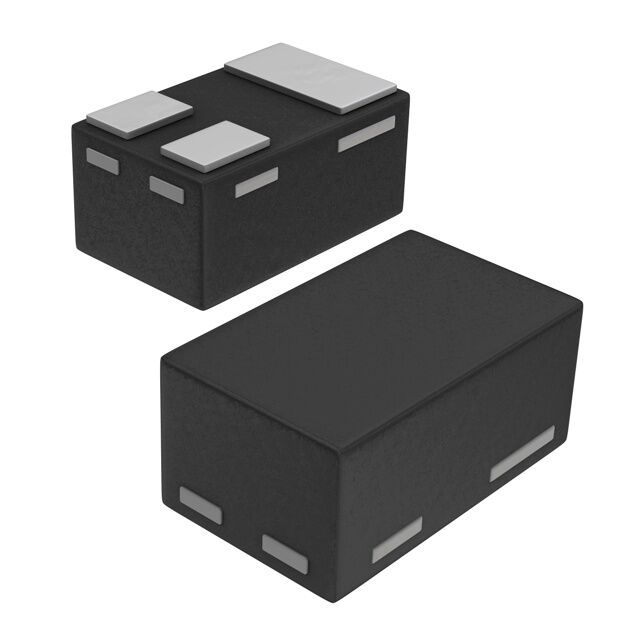

| Part Number | CPDQ3V3U-HF | CPDQ03C3V3U-HF | CPDQ03C5V0AU-HF | CPDQ03C5V0HP-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 10.4VC 0402 | DIODE ESD 3.3VWM 8VC 0402C-03/SO | DIODE ESD ARRAY 5VWM 60W 0402C-0 | TVS DIODE 5VWM 15VC 0402C-03 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
