CPDT-3V3UB-HF
lmages are for reference only.CPDT-3V3UB-HF
TVS DIODE 3.3VWM 10.5VC SOT23
DatasheetTO-236-3, SC-59, SOT-23-3
50,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10.5V Clamp 20A Ipp Tvs Diode Surface Mount SOT-23-3
CPDT-3V3UB-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 10.5V |
| Current - Peak Pulse (10/1000µs) | 20A |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | CPDT-3 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

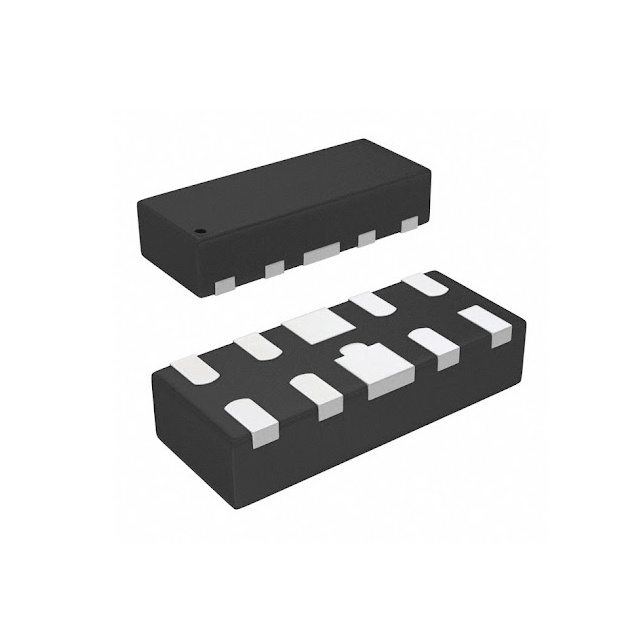

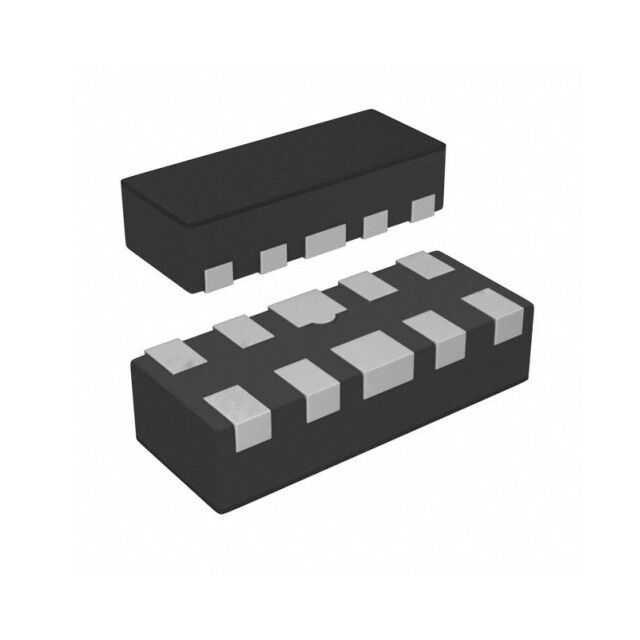

| Part Number | CPDA10C1V5U-HF | CPDA10C1V8U-HF | CPDA10C2V5U-HF | CPDA10C60VB-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ESD 1.5VWM 45W DFN2510-10 | DIODE ESD 24VWM 105W DFN2510-10 | DIODE ESD 2.5VWM 50W DFN2510-10 | DIODE ESD ARRAY 60VWM 198W DFN25 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
