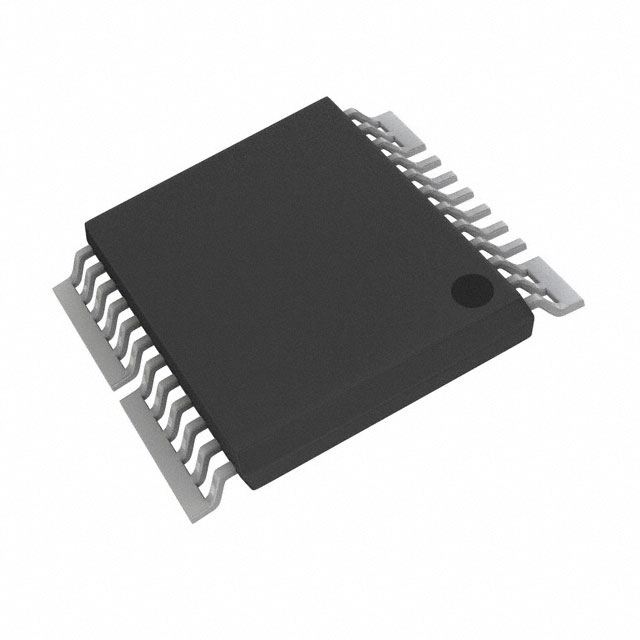

Current Sensor 42A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads
CQ330F
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Asahi Kasei Microdevices/AKM |
| Series | CQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 42A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 80mV/A |
| Frequency | 1MHz |
| Linearity | ±0.6% |
| Accuracy | ±0.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 0.5µs |
| Current - Supply (Max) | 11mA |
| Operating Temperature | -40°C ~ 90°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.220", 5.60mm Width), 10 Leads |
| Supplier Device Package | 24-VSOP |
| Base Product Number | CQ330 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CQ3300 | CQ3301 | CQ3302 | CQ3303 |
| Manufacturer | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT HALL 20A AC/DC | SENSOR CURRENT HALL 35A AC/DC | SENSOR CURRENT HALL 20A AC/DC | SENSOR CURRENT HALL 20A AC/DC |
| Series | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
