CSA309-33.000MABJ

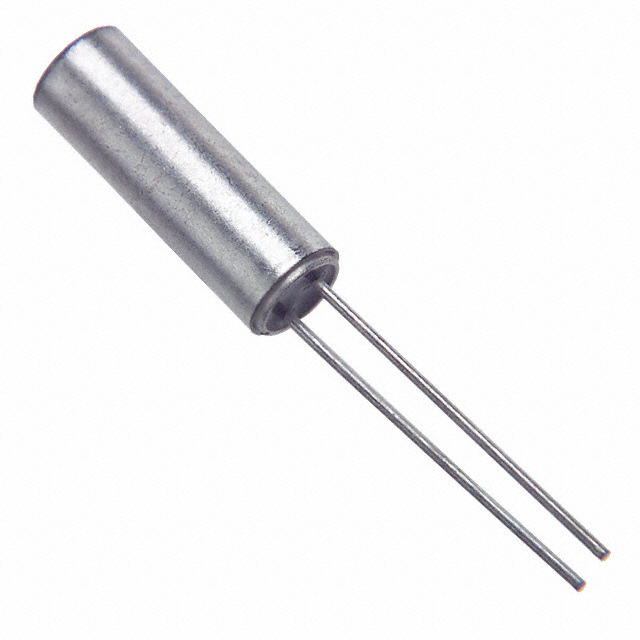

lmages are for reference only.CSA309-33.000MABJ
CRYSTAL 33.0000MHZ 18PF TH
DatasheetCylindrical Can, Radial
23,632 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 MHz ±30ppm Crystal 18pF 100 Ohms Cylindrical Can, Radial
CSA309-33.000MABJ
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | CSA309 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | MHz Crystal |
| Frequency | 33 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Operating Mode | 3rd Overtone |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension | 0.118" Dia x 0.346" L (3.00mm x 8.80mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CSA309-33.000MABJ | CSA309-33.000MABJ-UB | CSA309-33.000MABJ-UB | CSA309-10.000MABJ |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | CRYSTAL 33.0000MHZ 18PF TH | CRYSTAL 33.0000MHZ 18PF TH | CRYSTAL 33.0000MHZ 18PF TH | CRYSTAL 10.0000MHZ 18PF TH |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Bulk | Bulk | Bulk | Bulk |
