Product CatalogPart Number
CSAB0530-R22M
Manufacturer
CODACADescription
FIX IND 0.22UH 16.3A 4.0 MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
76,616 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CSAB0530-R22M
CSAB0530-R22M
lmages are for reference only.Payment Methods
Delivery Services
220 nH Shielded Molded Inductor 16.3 A 4mOhm Max Nonstandard
Quick Inquiry
CSAB0530-R22M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | CODACA |
| Series | CSAB0530 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Alloy Powder |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16.3 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.213" L x 0.205" W (5.40mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

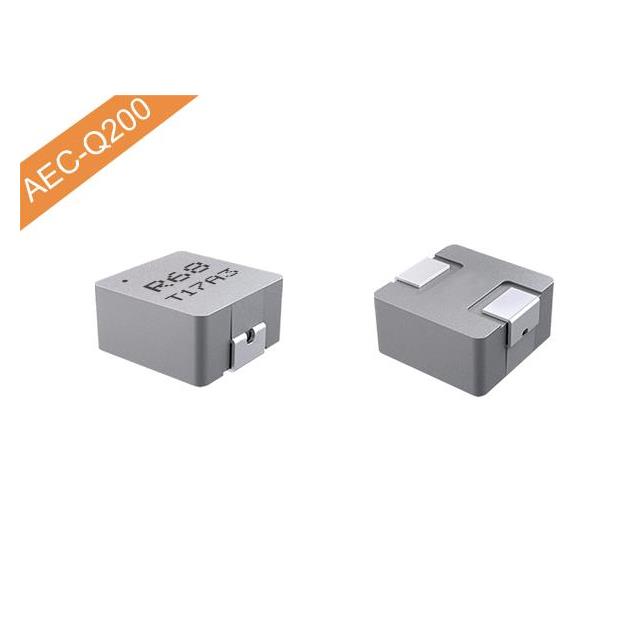

| Part Number | CSAB0530-R33M | CSAB0530-R47M | CSAB0530-R68M | CSAB0530-100M |
| Manufacturer | CODACA | CODACA | CODACA | CODACA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIX IND 0.33UH 13.5A 5.6 MOHM SM | FIX IND 0.47UH 10A 11.0 MOHM SMD | SMD MOLDING POWER CHOKE | FIX IND 10UH 2.6A 125.0 MOHM SMD |
| Series | CODACA | CODACA | CODACA | CODACA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
CSAB0420-100M
CODACA
CSAB0420-1R0M
CODACA
CSAB0420-1R2M
CODACA
CSAB0420-1R5M
CODACA
CSAB0420-2R2M
CODACA
CSAB0420-3R3M
CODACA
CSAB0420-4R7M
CODACA
CSAB0420-6R8M
CODACA
CSAB0420-R10M
CODACA

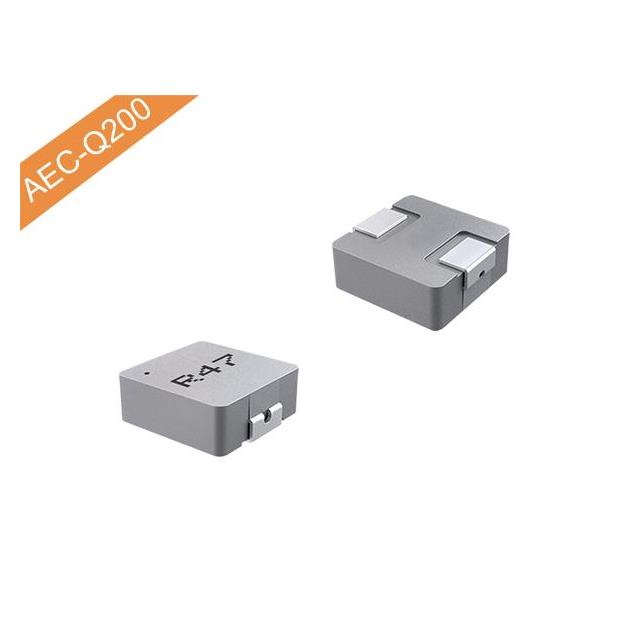

CSAB0420-R22M
CODACA
CSAB0420-R33M
CODACA
CSAB0420-R47M
CODACA
CSAB0420-R56M
CODACA
CSAB0420-R68M
CODACA
CSAB0518-1R0M
CODACA
CSAB0518-1R0M
CODACA

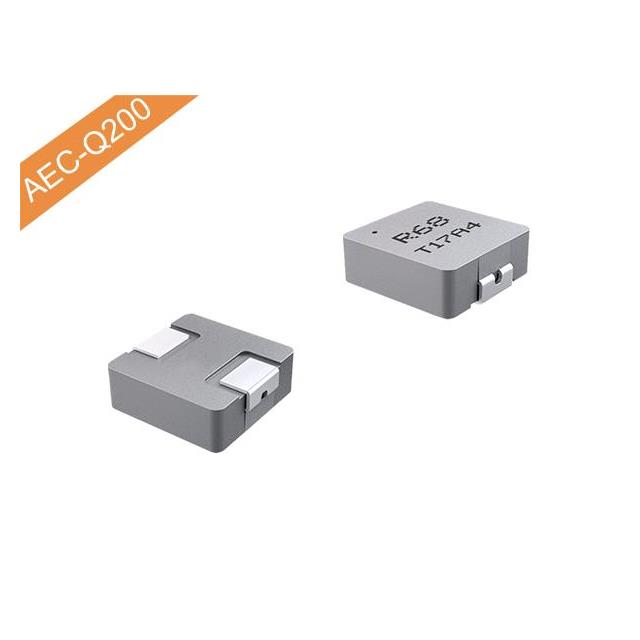

CSAB0518-1R2M
