CSDA1BC
lmages are for reference only.CSDA1BC
SENSOR CURRENT SWITCH 7.5A AC/DC
DatasheetModule, Single Pass Through
94,439 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 7.5A 1 Channel Current Switch Bidirectional Module, Single Pass Through
CSDA1BC
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CSDA |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Current Switch |
| Current - Sensing | 7.5A |
| Number of Channels | 1 |
| Output | NPN |
| Sensitivity | - |
| Frequency | - |
| Linearity | - |
| Accuracy | ±0.5% |
| Voltage - Supply | 6V ~ 16V |
| Response Time | 100µs |
| Current - Supply (Max) | 12mA |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | CSDA1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

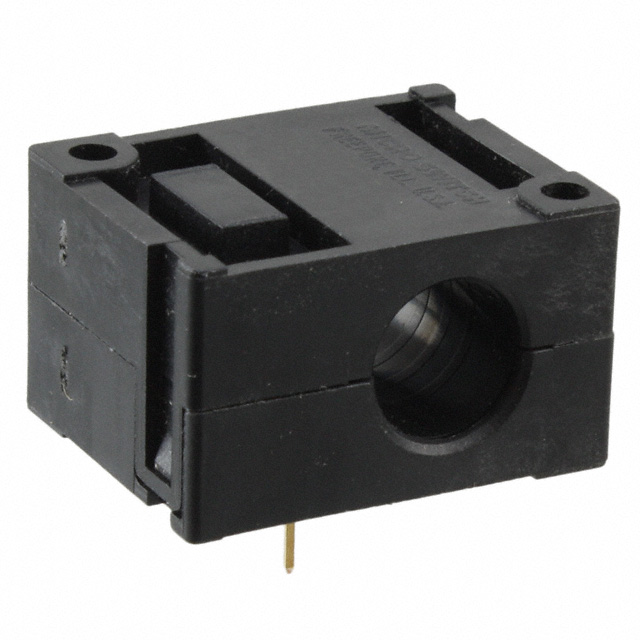

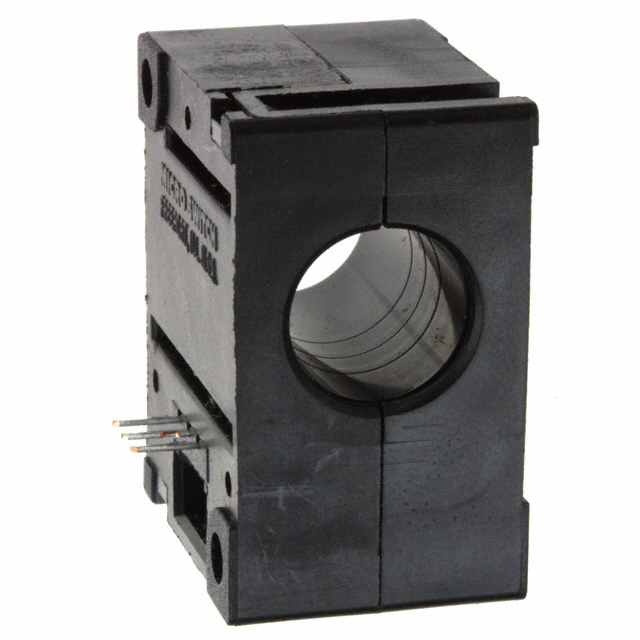

| Part Number | CSDA1BA | CSDA1BA-S | CSDA1AA | CSDA1AC |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR CURRENT SWITCH 1A AC/DC | SENSOR CURRENT SWITCH 1A AC/DC | SENSOR CURRENT SWITCH 1A AC/DC | SENSOR CURRENT SWITCH 7.5A AC/DC |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
