CSNV500M-125

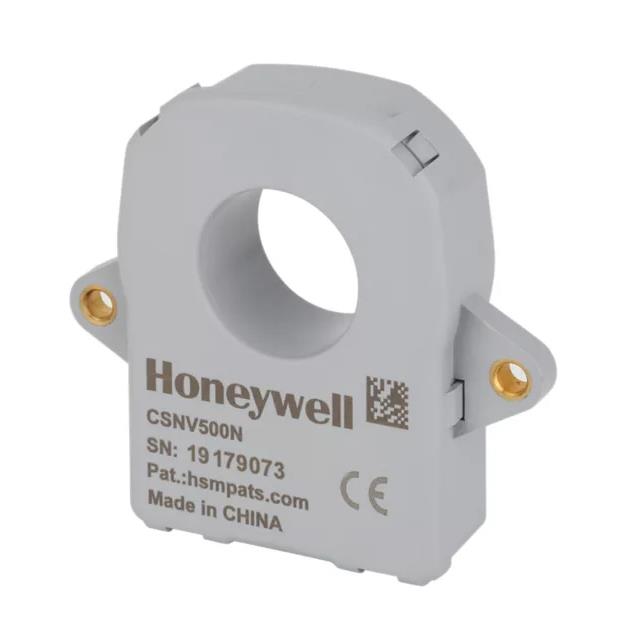

lmages are for reference only.CSNV500M-125
CSNV500 SERIES HALL-BASED CLOSED
DatasheetModule
107,861 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 25A 3 Channel Hall Effect, Closed Loop Unidirectional Module
CSNV500M-125
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CSNV500 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 25A |
| Number of Channels | 3 |
| Output | CAN Bus |
| Sensitivity | - |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.24% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 200ns |
| Current - Supply (Max) | 12mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Unidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CSNV500M-124 | CSNV500M-126 | CSNV500M-154 | CSNV500M-155 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CSNV500 SERIES HALL-BASED CLOSED | CSNV500 SERIES HALL-BASED CLOSED | CSNV500 SERIES HALL-BASED CLOSED | CSNV500 SERIES HALL-BASED CLOSED |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Box | Box | Box | Box |
