CSR2512B0R004F
lmages are for reference only.CSR2512B0R004F
RES 0.004 OHM 1% 2.5W 2512
Datasheet2512 (6432 Metric)
97,888 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 mOhms ±1% 2.5W Chip Resistor 2512 (6432 Metric) Current Sense, Non-Inductive Metal Element
CSR2512B0R004F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Riedon products by Bourns |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Riedon products by Bourns |
| Series | CSR |
| Resistance | 4 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 2.5W |
| Composition | Metal Element |
| Features | Current Sense, Non-Inductive |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | - |
| Size / Dimension | 0.250" L x 0.118" W (6.35mm x 3.00mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

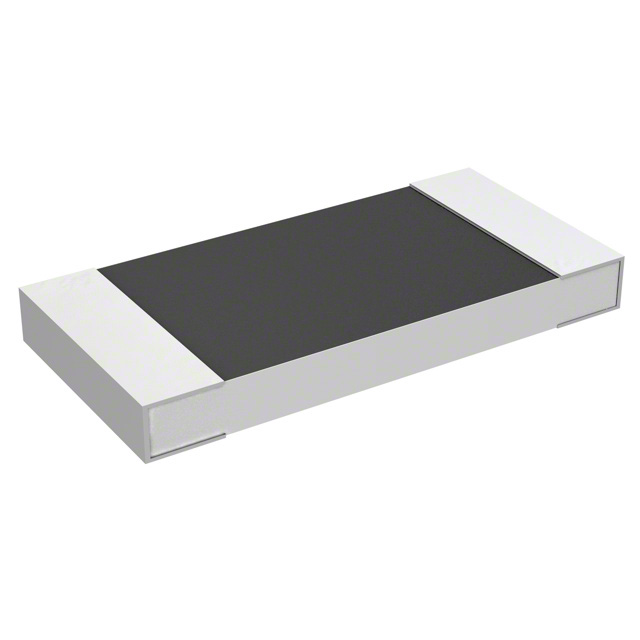

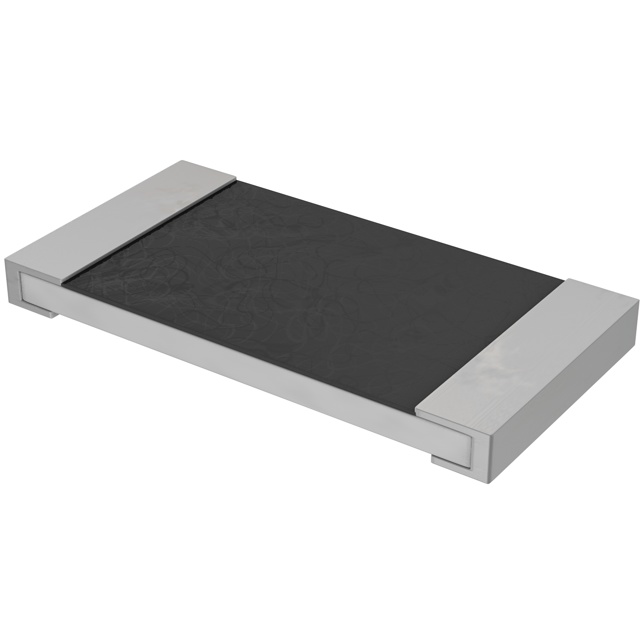

| Part Number | CSR2512B0R005F | CSR2010FG33L0 | CSR2010FK10L0 | CSR2010FK16L0 |
| Manufacturer | Riedon products by Bourns | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.005 OHM 1% 2.5W 2512 | RES 0.033 OHM 1% 1W 2010 | RES 0.01 OHM 1% 1W 2010 | RES 0.016 OHM 1% 1W 2010 |
| Series | Riedon products by Bourns | Stackpole Electronics Inc | Stackpole Electronics Inc | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
