CSS2H-3920K-4L00F
lmages are for reference only.CSS2H-3920K-4L00F
CURRENTSENSESHUNT 3920 R004 1% 4
Datasheet3920 (1052 Metric)
83,337 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 mOhms ±1% 4W Chip Resistor 3920 (1052 Metric) Automotive AEC-Q200, Current Sense Metal Element
CSS2H-3920K-4L00F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Bourns Inc. |
| Series | CSS2H-3920 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 4 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 4W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 3920 (1052 Metric) |
| Supplier Device Package | 3920 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.394" L x 0.205" W (10.00mm x 5.20mm) |
| Height - Seated (Max) | 0.042" (1.06mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

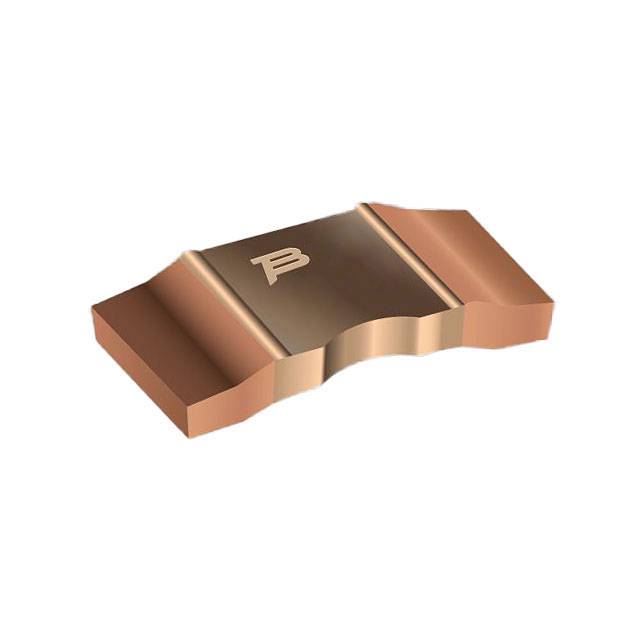

| Part Number | CSS2H-3920K-2L00F | CSS2H-3920K-2L00FE | CSS2H-3920K-2L50F | CSS2H-3920K-3L00F |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.002 OHM 1% 6W 3920 | RES 0.002 OHM 1% 6W 3920 | CURRENTSENSESHUNT 3920 R0025 1% | RES 0.003 OHM 1% 5W 3920 |
| Series | Bourns Inc. | |||
| Packaging | Tape & Reel (TR) |
