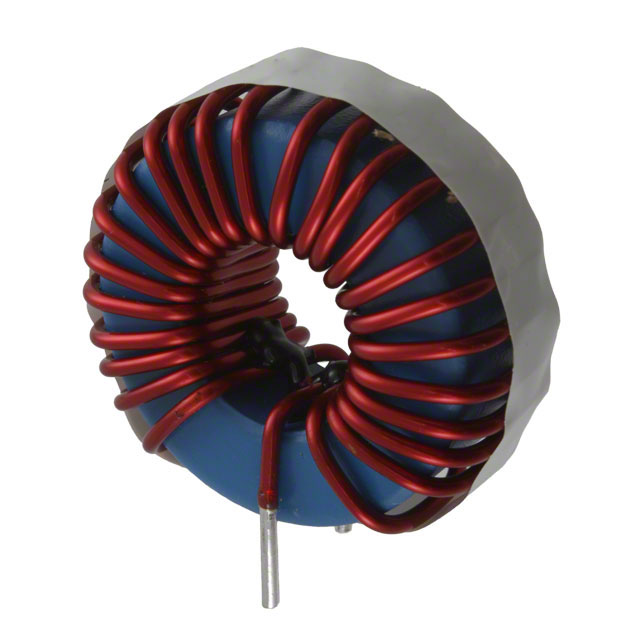

CTX100-10-52LPR
lmages are for reference only.CTX100-10-52LPR
FIXED IND 100UH 17.6A 10.9 MOHM
DatasheetRadial, Horizontal (Open)
24,943 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Toroidal Inductor 17.6 A 10.9mOhm Max Radial, Horizontal (Open)
CTX100-10-52LPR
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | CTX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.6 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 2.244" Dia (57.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | CTX100-10-52-R | CTX10-1-52-R | CTX10-1-52-R | CTX10-1-52LP-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 17.6A 10.9 MOHM | FIXED IND 10UH 2.4A 48.1 MOHM TH | FIXED IND 10UH 2.4A 48.1 MOHM TH | FIXED IND 10UH 2.4A 48.1 MOHM TH |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
