CVCO55BE-1845-1877
lmages are for reference only.CVCO55BE-1845-1877
VCO 1861MHZ 0.5-4V 12.7X12.7MM
Datasheet16-QFN, Variant
97,621 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1861MHz Center Frequency 0.5 V ~ 4 V Voltage Controlled Oscillator 6 ±2 dBm -15 2nd Harmonic Typ (dBc)
CVCO55BE-1845-1877
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 1845 ~ 1877MHz |
| Frequency - Center | 1861MHz |
| Voltage - Supply | 8V |
| Tuning Voltage (VDC) | 0.5 V ~ 4 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 35mA |
| Pushing (MHz/V) | 2 |
| Power (dBm) | 6 ±2 |
| Phase Noise Typ (dBc/Hz) | -106 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.150" (3.81mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55BE-1845-1877 | CVCO55BE-1845-1877 | CVCO55BE-1848-1852 | CVCO55BE-1848-1852 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

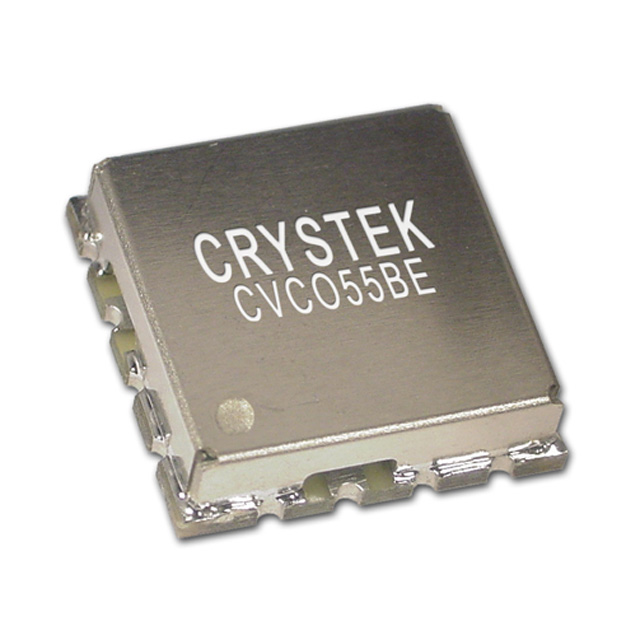

| Description | VCO 1861MHZ 0.5-4V 12.7X12.7MM | VCO 1861MHZ 0.5-4V 12.7X12.7MM | VCO 1850MHZ 0.5-2V 12.7X12.7MM | VCO 1850MHZ 0.5-2V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
