CVCO55BE-2400-2670

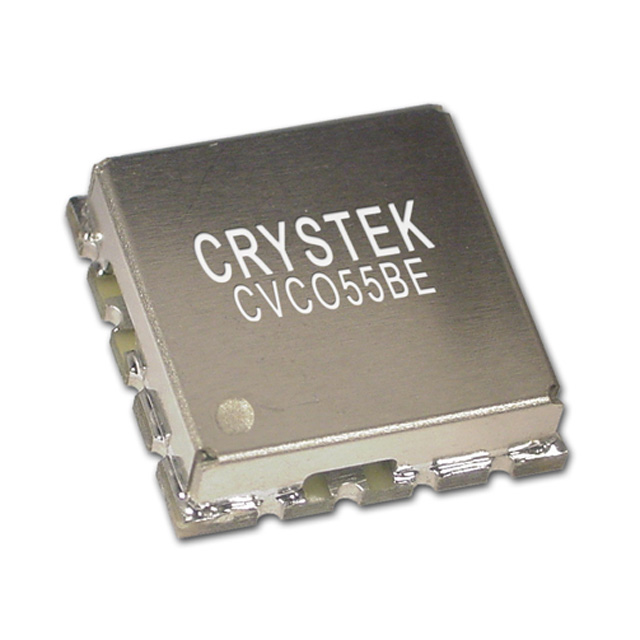

lmages are for reference only.CVCO55BE-2400-2670
VCO 2535MHZ 1-17V 12.7X12.7MM
Datasheet16-QFN, Variant
66,817 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2535MHz Center Frequency 1 V ~ 17 V Voltage Controlled Oscillator 2.5 ±2.5 dBm -15 2nd Harmonic Typ (dBc)
CVCO55BE-2400-2670
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2400 ~ 2670MHz |
| Frequency - Center | 2535MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 1 V ~ 17 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 38mA |
| Pushing (MHz/V) | 4 |
| Power (dBm) | 2.5 ±2.5 |
| Phase Noise Typ (dBc/Hz) | -97 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.150" (3.81mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55BE-2400-2670 | CVCO55BE-2400-2670 | CVCO55BE-2400-2650 | CVCO55BE-2400-2650 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 2535MHZ 1-17V 12.7X12.7MM | VCO 2535MHZ 1-17V 12.7X12.7MM | VCO 2525MHZ 0.5-8V 12.7X12.7MM | VCO 2525MHZ 0.5-8V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
