CVCO55CC-1560-1615
lmages are for reference only.CVCO55CC-1560-1615
VCO 1587.5MHZ 0.3-4.7V 12.7X12.7
Datasheet16-QFN, Variant
84,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1587.5MHz Center Frequency 0.3 V ~ 4.7 V Voltage Controlled Oscillator 3 ±3 dBm -15 2nd Harmonic Typ (dBc)
CVCO55CC-1560-1615
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 1560 ~ 1615MHz |
| Frequency - Center | 1587.5MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0.3 V ~ 4.7 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 25mA (Typ) |
| Pushing (MHz/V) | 1 |
| Power (dBm) | 3 ±3 |
| Phase Noise Typ (dBc/Hz) | -112 (Max) |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.220" (5.59mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

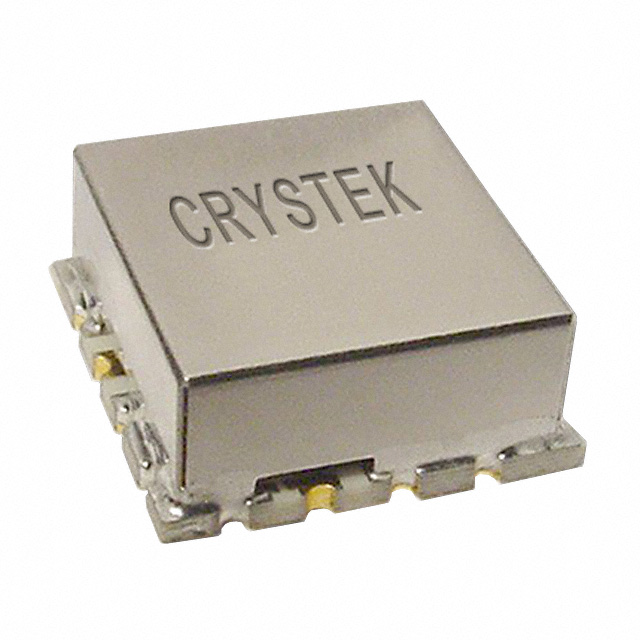

| Part Number | CVCO55CC-1560-1615 | CVCO55CC-1560-1615 | CVCO55CC-0380-0440 | CVCO55CC-0380-0440 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 1587.5MHZ 0.3-4.7V 12.7X12.7 | VCO 1587.5MHZ 0.3-4.7V 12.7X12.7 | VCO 410MHZ 0.3-4.7V 12.7X12.7MM | VCO 410MHZ 0.3-4.7V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
