CVCO55CC-2200-2400

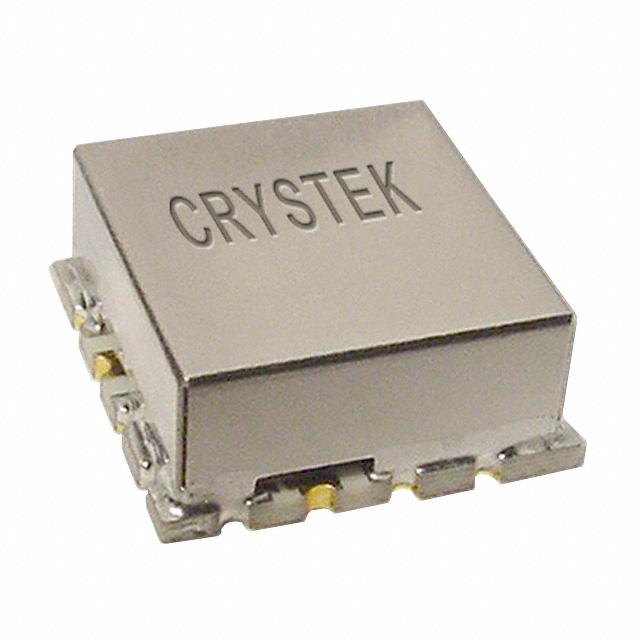

lmages are for reference only.CVCO55CC-2200-2400
VCO 2300MHZ 1-12V 12.7X12.7MM
Datasheet16-QFN, Variant
74,629 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2300MHz Center Frequency 1 V ~ 12 V Voltage Controlled Oscillator 7 ±2 dBm -15 2nd Harmonic Typ (dBc)
CVCO55CC-2200-2400
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2200 ~ 2400MHz |
| Frequency - Center | 2300MHz |
| Voltage - Supply | 8V |
| Tuning Voltage (VDC) | 1 V ~ 12 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 28mA (Typ) |
| Pushing (MHz/V) | 1 |
| Power (dBm) | 7 ±2 |
| Phase Noise Typ (dBc/Hz) | -110 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.220" (5.59mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55CC-2200-2400 | CVCO55CC-2200-2400 | CVCO55CC-2200-2260 | CVCO55CC-2200-2260 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 2300MHZ 1-12V 12.7X12.7MM | VCO 2300MHZ 1-12V 12.7X12.7MM | VCO 2230MHZ 0.5-4.5V 12.7X12.7MM | VCO 2230MHZ 0.5-4.5V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
