CWR26HH106MBFZ\PR

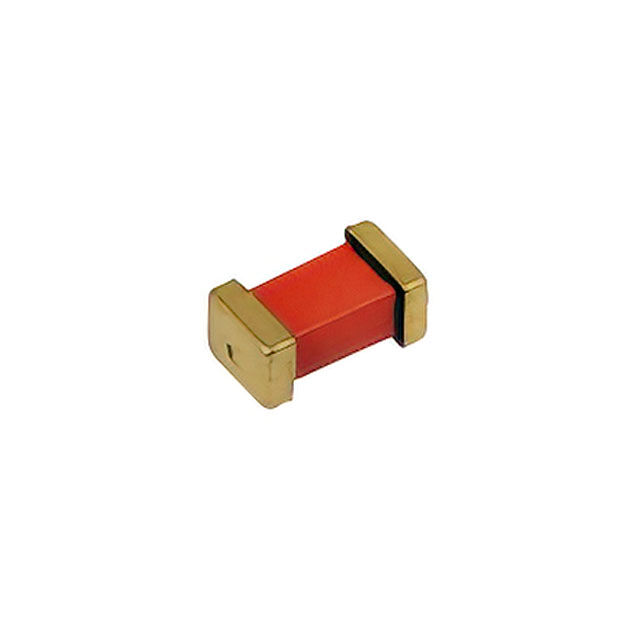

lmages are for reference only.CWR26HH106MBFZ\PR
CAP TANT 10UF 20% 15V 2214
Datasheet2214 (5634 Metric)
37,662 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF Conformal Coated Tantalum Capacitors 15 V 2214 (5634 Metric) 667mOhm
CWR26HH106MBFZ\PR
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | CWR26 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 15 V |
| Type | Conformal Coated |
| ESR (Equivalent Series Resistance) | 667mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2214 (5634 Metric) |
| Size / Dimension | 0.220" L x 0.135" W (5.59mm x 3.43mm) |
| Height - Seated (Max) | 0.085" (2.16mm) |
| Lead Spacing | - |
| Manufacturer Size Code | F |
| Ratings | - |
| Features | High Reliability |
| Failure Rate | B (0.1%) |
| Grade | Military |
| Qualification | MIL-PRF-55365/13 |
| Base Product Number | CWR26 |
| Product Attribute |  |
|
|
 |
| Part Number | CWR26HH106MBFZ | CWR26HH106MBFZ\HR | CWR26HH106MBFZ\TR | CWR26HH106MBFA |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 10UF 20% 15V 2214 | CAP TANT 10UF 20% 15V 2214 | CAP TANT 10UF 20% 15V 2214 | CAP TANT 10UF 20% 15V 2214 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
