CY8CLED08-48LTXI
lmages are for reference only.CY8CLED08-48LTXI
LED DRIVER, 8-SEGMENT, CMOS
Datasheet48-VFQFN Exposed Pad
83,396 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
CY8CLED08-48LTXI
| Category | Integrated Circuits (ICs) - Embedded - Application Specific Microcontrollers |
| Manufacturer | Cypress Semiconductor Corp |
| Series | EZ-Color™ CY8CLED |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Applications | HB LED Controller |
| Core Processor | M8C |
| Program Memory Type | FLASH (16KB) |
| Controller Series | CY8CLED |
| RAM Size | 256 x 8 |
| Interface | I2C, SPI, UART/USART |
| Number of I/O | 44 |
| Voltage - Supply | 3V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Base Product Number | CY8CLED08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

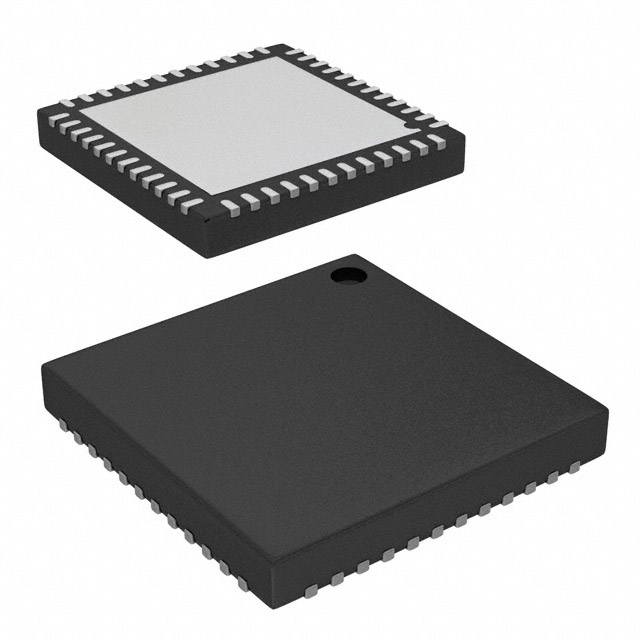

| Part Number | CY8CLED08-48LFXI | CY8CLED08-48LTXI | CY8CLED08-48LTXIT | CY8CLED08-28PVXI |
| Manufacturer | Cypress Semiconductor Corp | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED DRIVER, 8-SEGMENT, CMOS | IC MCU 8BIT 16KB FLASH 48QFN | IC MCU 8BIT 16KB FLASH 48QFN | LED DRIVER, 8-SEGMENT |
| Series | EZ-Color™ CY8CLED | - | - | EZ-Color™ CY8CLED |
| Packaging | Bulk | Tray | Tape & Reel (TR) | Tube |

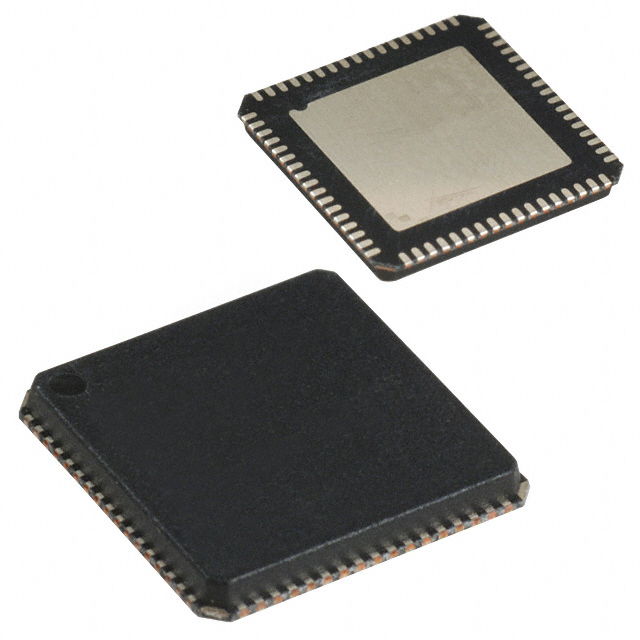

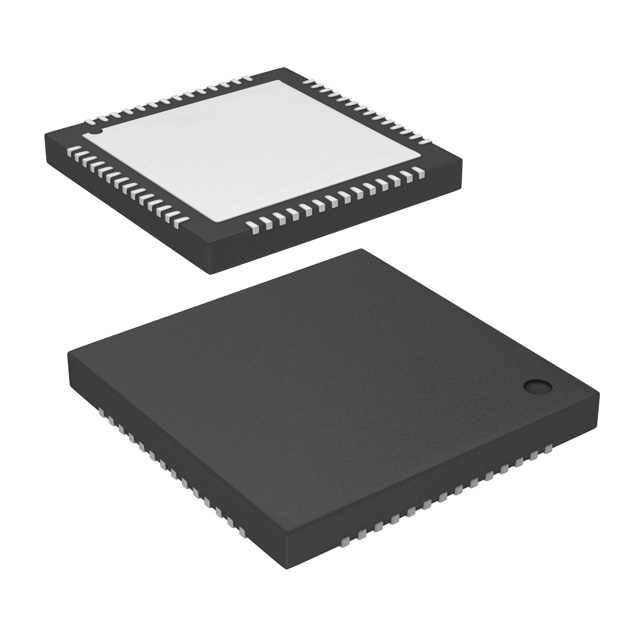

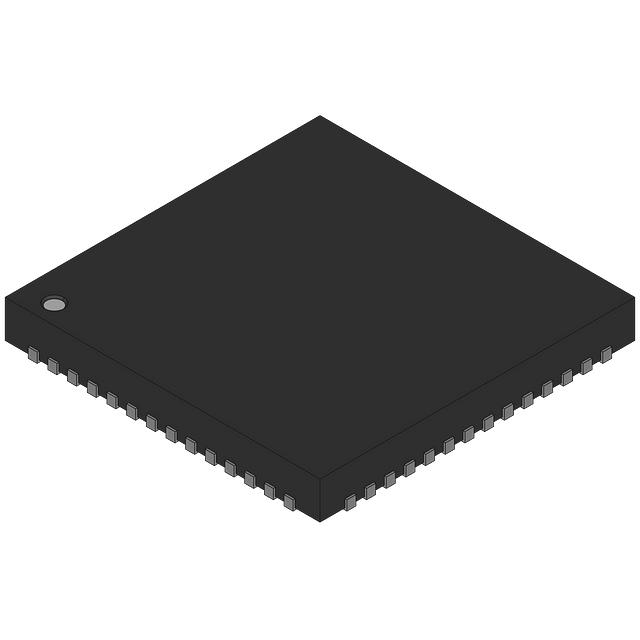

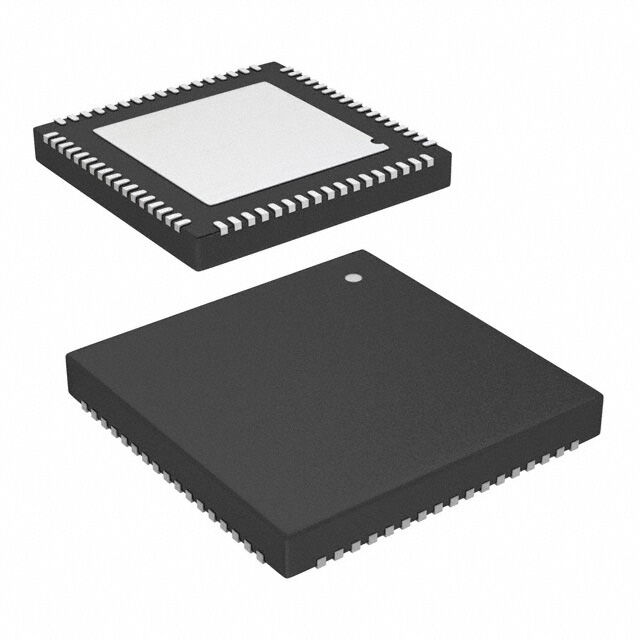

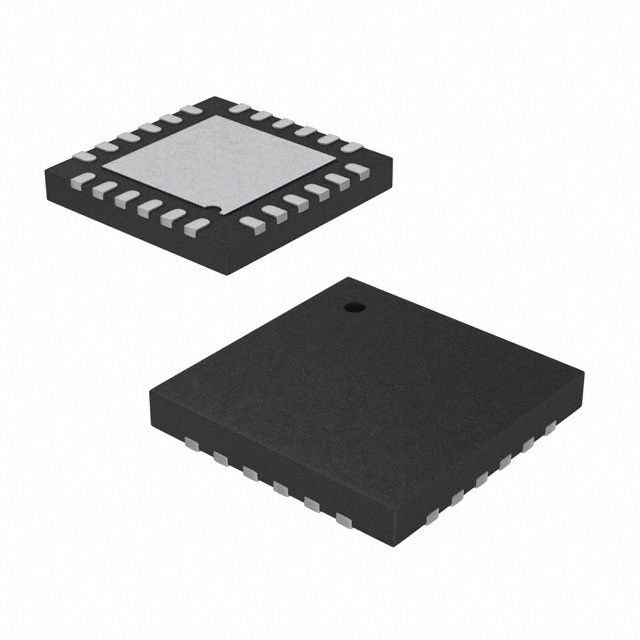

Recommended Products
