Product CatalogPart Number
CYW20706UA2KFFB4G
Manufacturer
Infineon TechnologiesDescription
IC RF TXRX+MCU BLE 49FBGA
Datasheet
DatasheetPackage
49-TFBGA
In Stock
73,994 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CYW20706UA2KFFB4G
CYW20706UA2KFFB4G

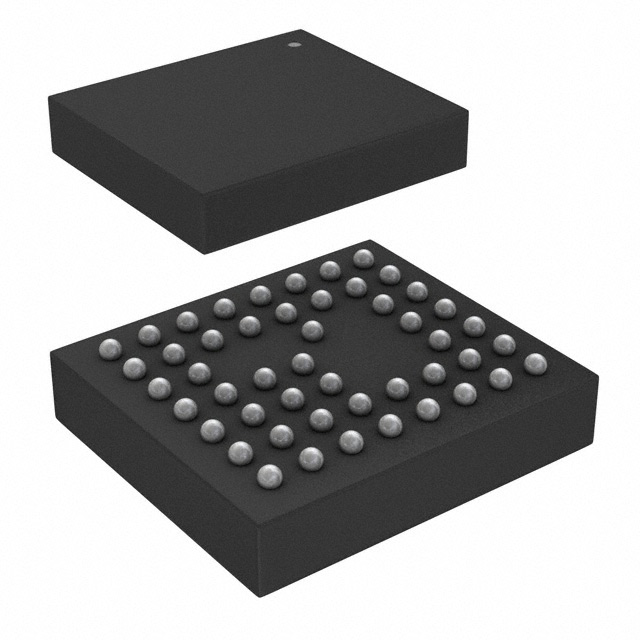

lmages are for reference only.Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 49-TFBGA
Quick Inquiry
CYW20706UA2KFFB4G
Specifications
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.2 |
| Modulation | 4DQPSK, 8DPSK, GFSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 12dBm |
| Sensitivity | -96.5dBm |
| Memory Size | 848kB ROM, 352kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART |
| GPIO | 24 |
| Voltage - Supply | 3.3V |
| Current - Receiving | 12.5mA |
| Current - Transmitting | 26.5mA |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 49-TFBGA |
| Supplier Device Package | 49-FBGA (4.5x4) |
| Base Product Number | CYW20706 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CYW20706UA2KFFB4GT | CYW20702A1KWFBGAlternate Purchasing Options | CYW20702A1KWFBGTAlternate Purchasing Options | CYW20702B0KWFBG |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC RF TXRX+MCU BLE 49FBGA | IC RF TXRX+MCU BLE 50WFBGA | IC RF TXRX+MCU BLE 50WFBGA | IC RF TXRX+MCU BLE 50WFBGA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tape & Reel (TR) | Tray |
