CYW20721B2KWB9GT
lmages are for reference only.CYW20721B2KWB9GT
IC RF TXRX+MCU BLE 134WLCSP
Datasheet134-BGA, WLCSP
83,609 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v5.1 + EDR 2.4GHz 134-BGA, WLCSP
CYW20721B2KWB9GT
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.1 + EDR |
| Modulation | 4-DQPSK, 8-DPSK, GFSK, QPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 3Mbps |
| Power - Output | 5.5dBm |
| Sensitivity | -95.5dBm |
| Memory Size | 1MB Flash, 448kB RAM |
| Serial Interfaces | GPIO, HCI, I2C, I2S, PWM, SPI, UART |
| GPIO | 40 |
| Voltage - Supply | 1.76V ~ 3.63V |
| Current - Receiving | 5.9mA |
| Current - Transmitting | 5.6mA |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 134-BGA, WLCSP |
| Supplier Device Package | 134-WLCSP (3.31x3.22) |
| Base Product Number | CYW20721 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

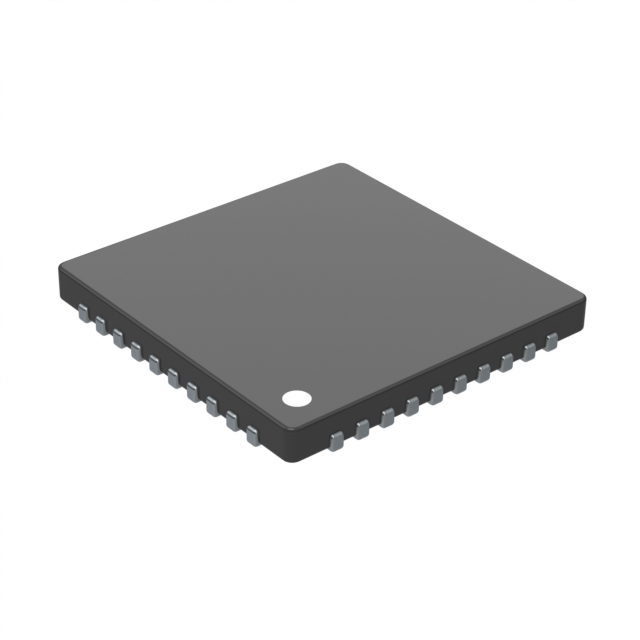

| Part Number | CYW20721B2KUMLG | CYW20721B2KUMLGT | CYW20702A1KWFBGAlternate Purchasing Options | CYW20702A1KWFBGTAlternate Purchasing Options |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 40QFN | IC RF TXRX+MCU BLE 40QFN | IC RF TXRX+MCU BLE 50WFBGA | IC RF TXRX+MCU BLE 50WFBGA |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tape & Reel (TR) |
